3 Using the Scope Functions
64 Agilent U1602B/U1604B User’s and Service Guide

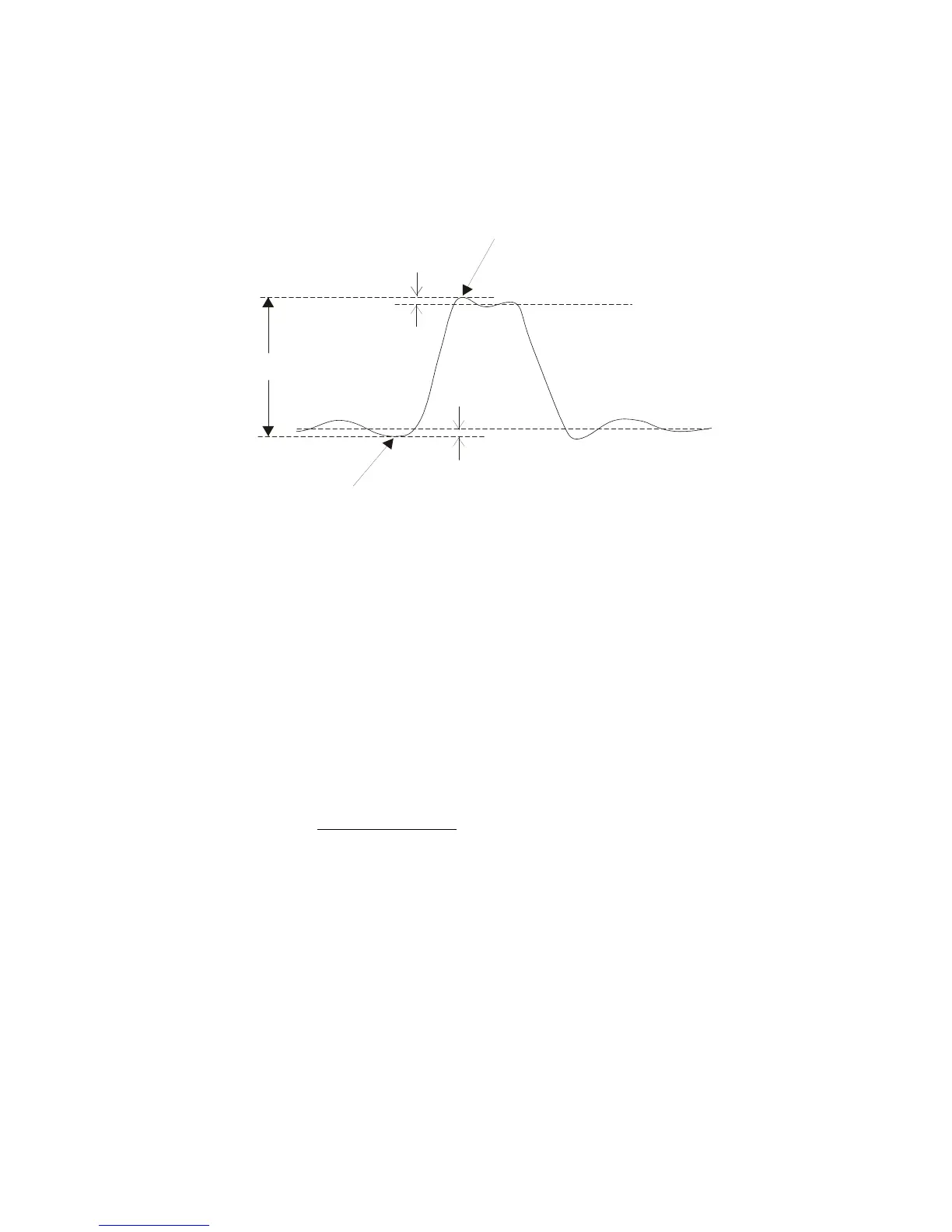

Figure 3-27 Voltage measurement
Phase and Delay
Phase
Phase is the calculated phase shift from input source 1 to input source 2,
expressed in degrees. Negative phase shift values indicate that the rising
edge of source 1 occur after the rising edge of source 2.
Phase =
Vbase
3000b01.cdr
Vtop
Overshoot
Vmax
Overshoot
Preshoot
Vpp
Vmin
Delay
Source 1 period
x 360
