Front Panel and Displays Overview 2
Agilent U1602B/U1604B User’s and Service Guide 23
Oscilloscope Display Overview

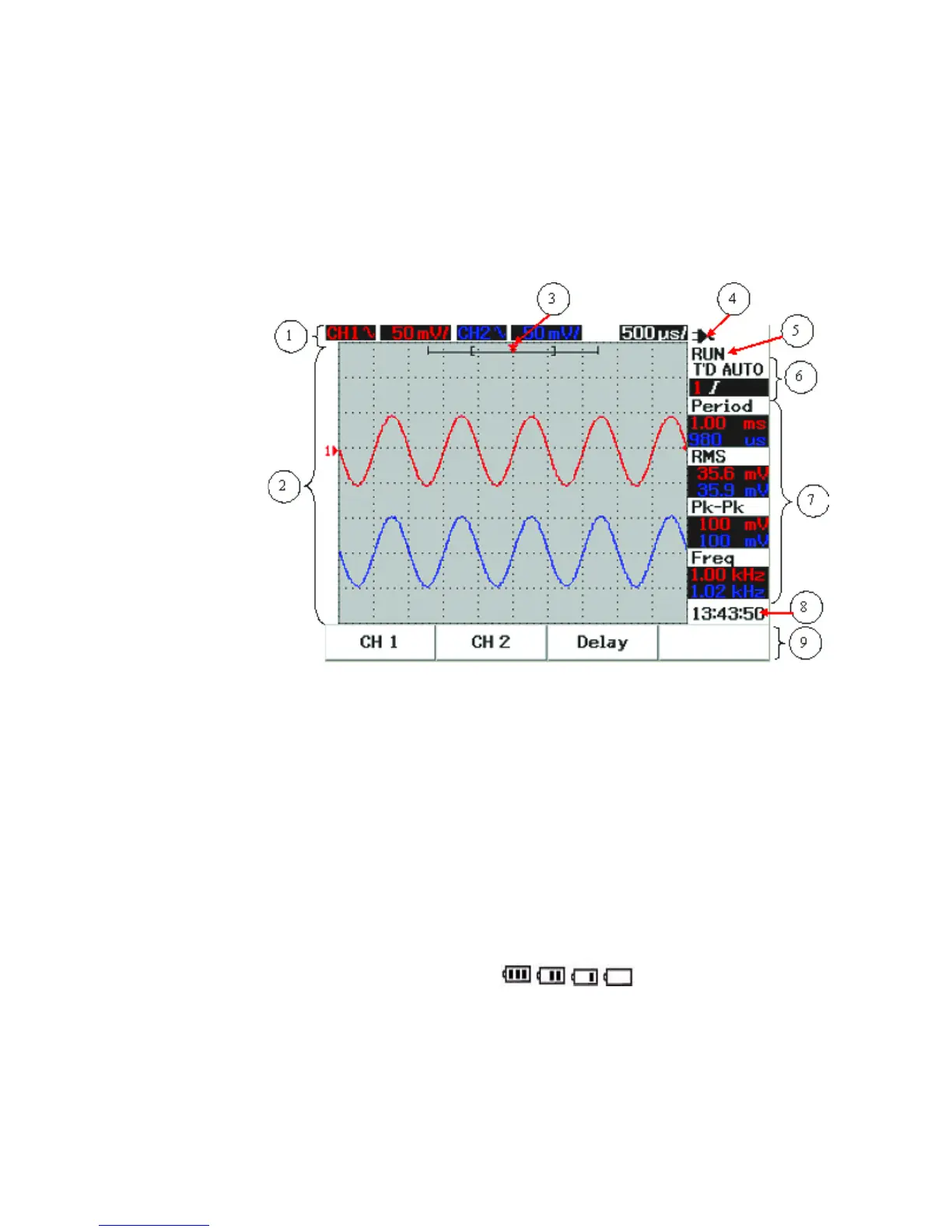

Figure 2-2 Interpreting Scope Display
1 Status line The top line of the display shows the setup information of
channel 1 and channel 2 in vertical sensitivity (volt/div) and sweep
speed (time/div).
2 Waveform display area The display area contains the waveform
acquisition, channel identifiers in two different colors, trigger level and
ground reference indicator.
3 Time reference and trigger point This position point is used as an
indicator as well as a trigger point for time reference in waveform
window.
4 Power source indicator This indicator will shows the status of the
battery from full to empty and indicate the AC
connectivity for battery charging.
