To Set Delay of the Waveforms
The time reference position sets the initial position of the trigger event
within acquisition memory with delay set to 0. The delay setting sets the
specific location of the trigger event with respect to the time reference
position. Turning the rotary switch to move the trigger point indicator
to the left or right from the time reference indicator . When delay time
is set to zero, the delay time indicator overlaps the time reference
indicator.
To set delay for a waveform, follow instructions below:
1 Enter the Scope menu by pressing the button.
2 In Scope menu, press F3 to access Delay submenu.
3 On page 1/2, press F1 softkey to enable the time base adjustment to the
waveform. Turn the rotary switch clockwise to move the waveform to
positive (right side of the trigger point) direction and anti- clockwise to
move the waveform to the negative (left side of the trigger point)
direction.
4 While turning the rotary switch, you will notice the corresponding time
value is displayed under the Time header column.

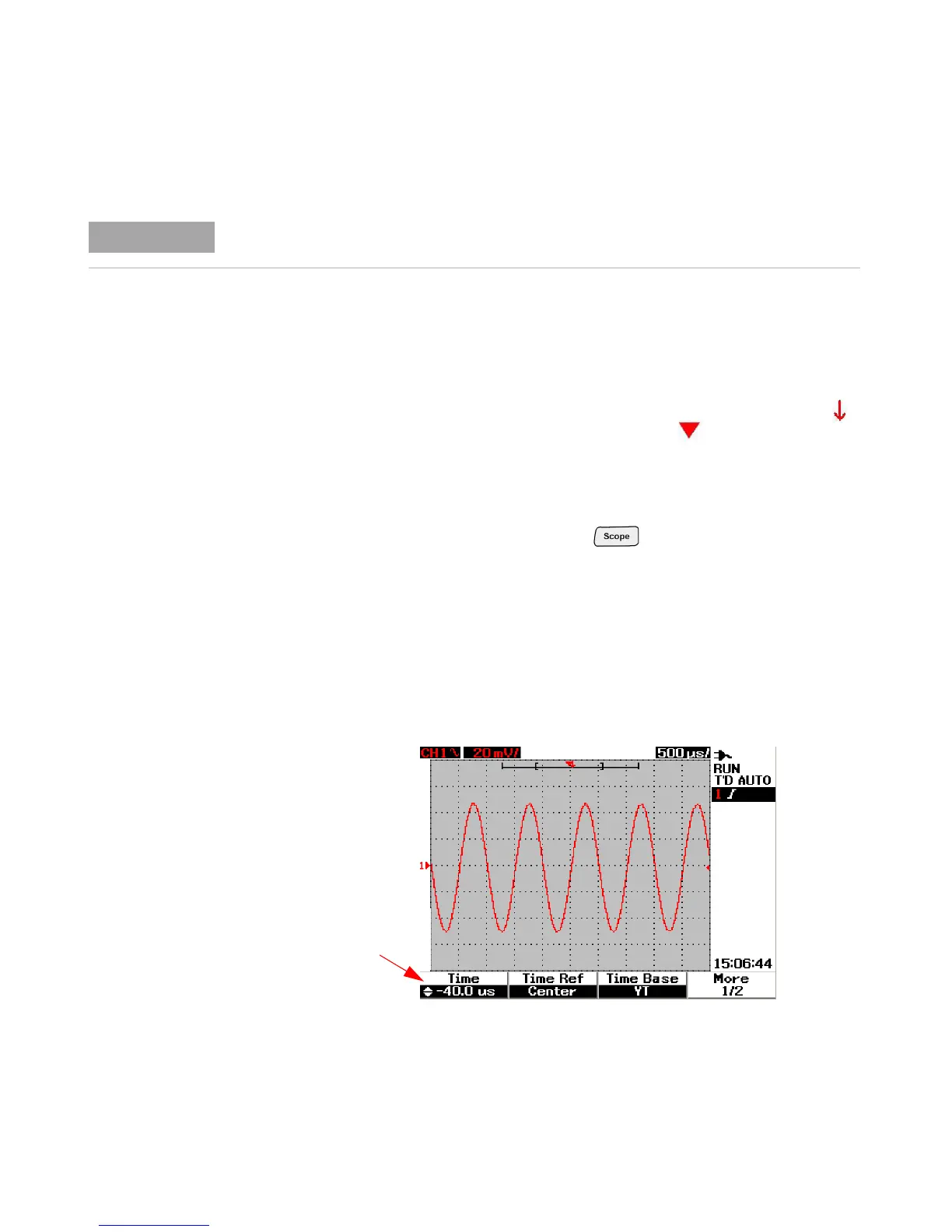

Figure 3-13 Changing time base of a waveform
The horizontal scale factor changes the sweep speed in a 1-2-5 step sequence.
Adjust time base of the
displayed waveform
