To remove handler
1 Perform the following procedures:
• To remove stand
• To remove battery pack
2 To remove the front and rear cover, unscrew all the pointed locations
as shown in Figure 8- 7 from the plastic cover.

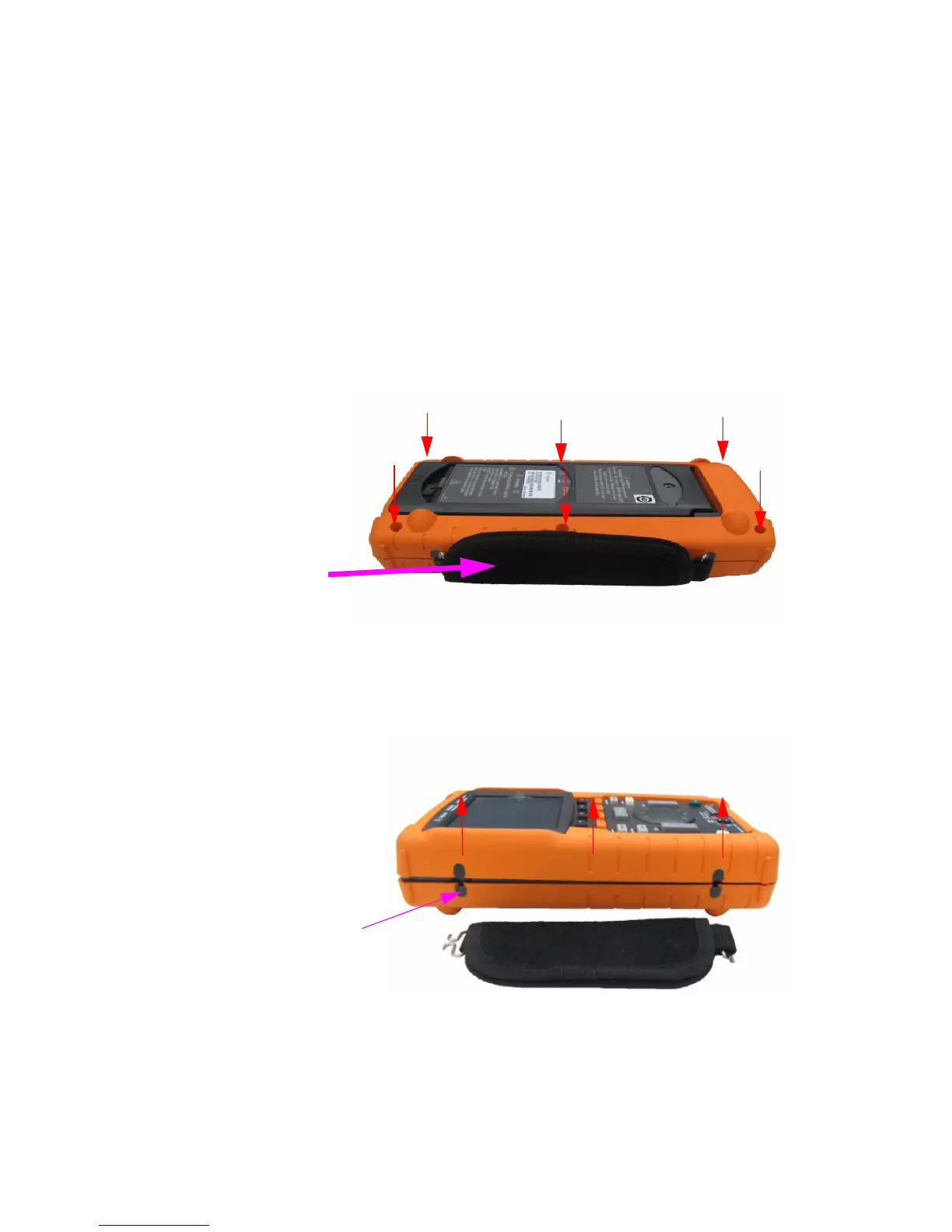

Figure 8-7 Remove screw from the rear cover
3 Gently push up the front panel and remove the handler hook from hook
clamp.
Figure 8-8 Remove handler from the instrument
Handler
Hook Clamp
