5 Using the Data Logger Functions
122 Agilent U1602B/U1604B User’s and Service Guide

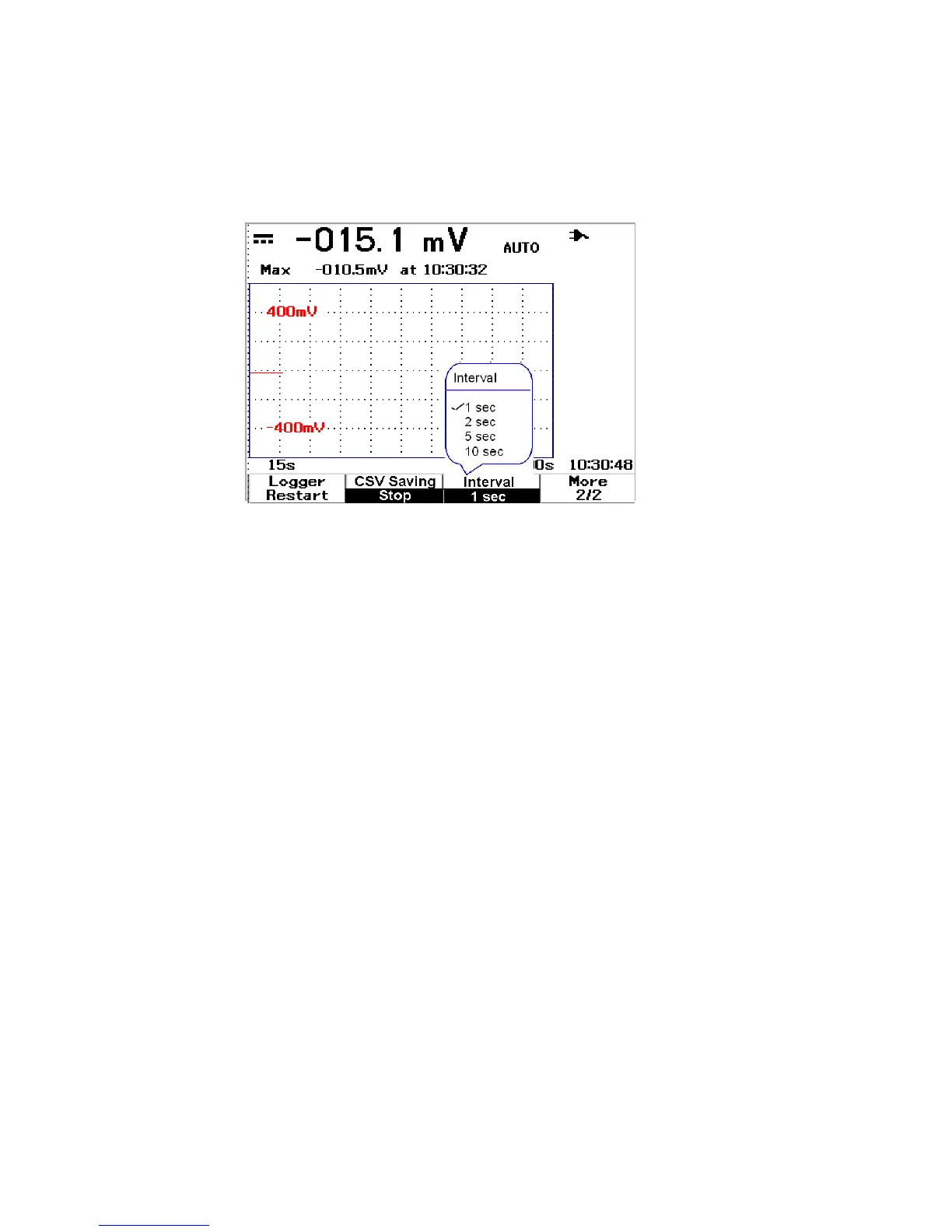

Figure 5-4 Setting the interval
Restart Test
Users are able to clear the previously captured readings and refresh the
minimum, maximum and average values. To enable this function, press F4
to proceed to page 2/2 of the data logger mode. Then press F1 in page 2/2
to activate the function.
