Using the Scope Functions 3
Agilent U1602B/U1604B User’s and Service Guide 69

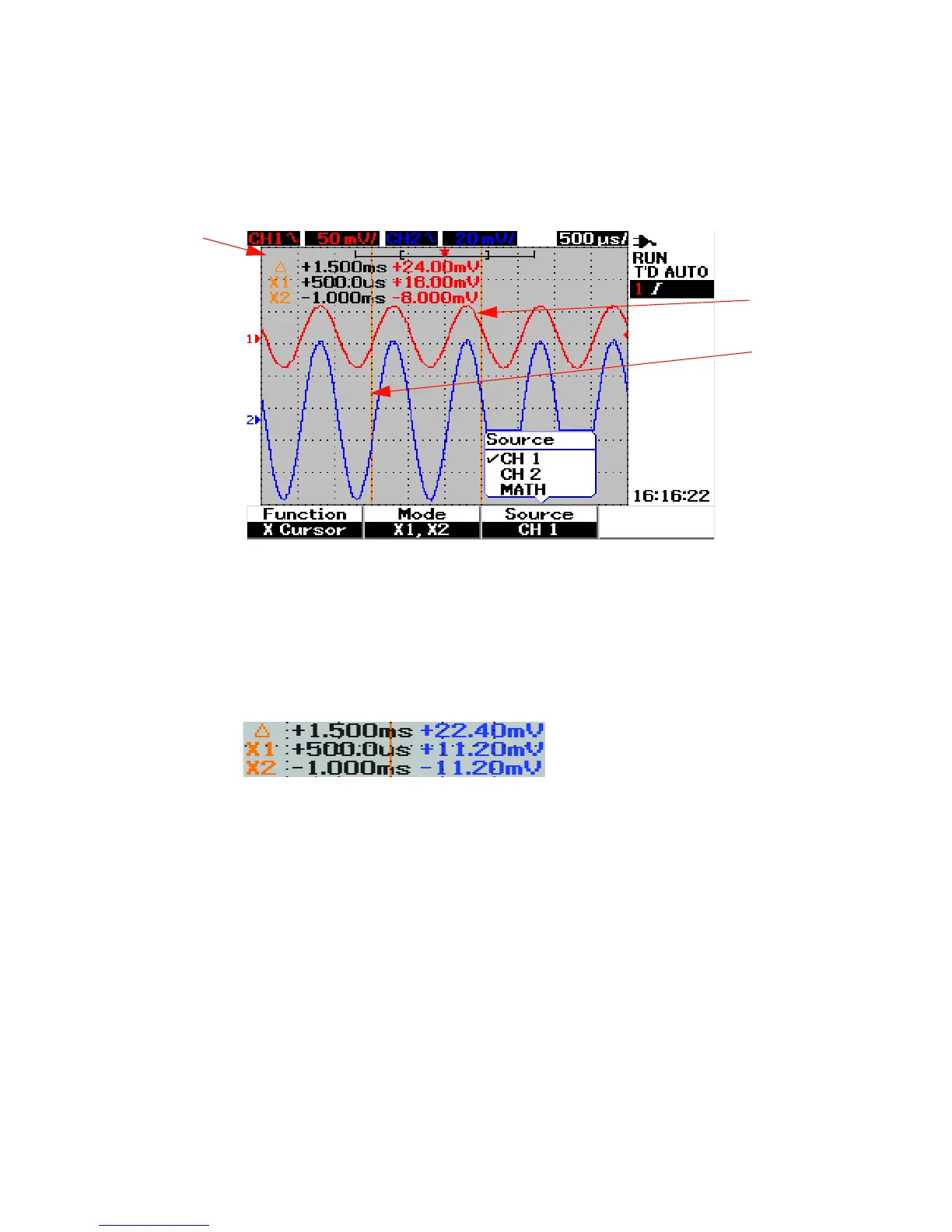

Figure 3-31 X-cursor measurement for channel 1 signal with X1 and X2 cursor lines
5 In Figure 3- 31, measurement is made for the signal at channel 2.
The X1 measurement is +11.20 mV at +500.0
µs.
The X2 measurement is –11.20 mV at –1.000 ms.
The delta of X1 and X2 voltage measurement is +22.40 mV with time
relative difference of +1.500 ms.
X1 cursor line
X2 cursor line
X1, X2 and delta
measurement
