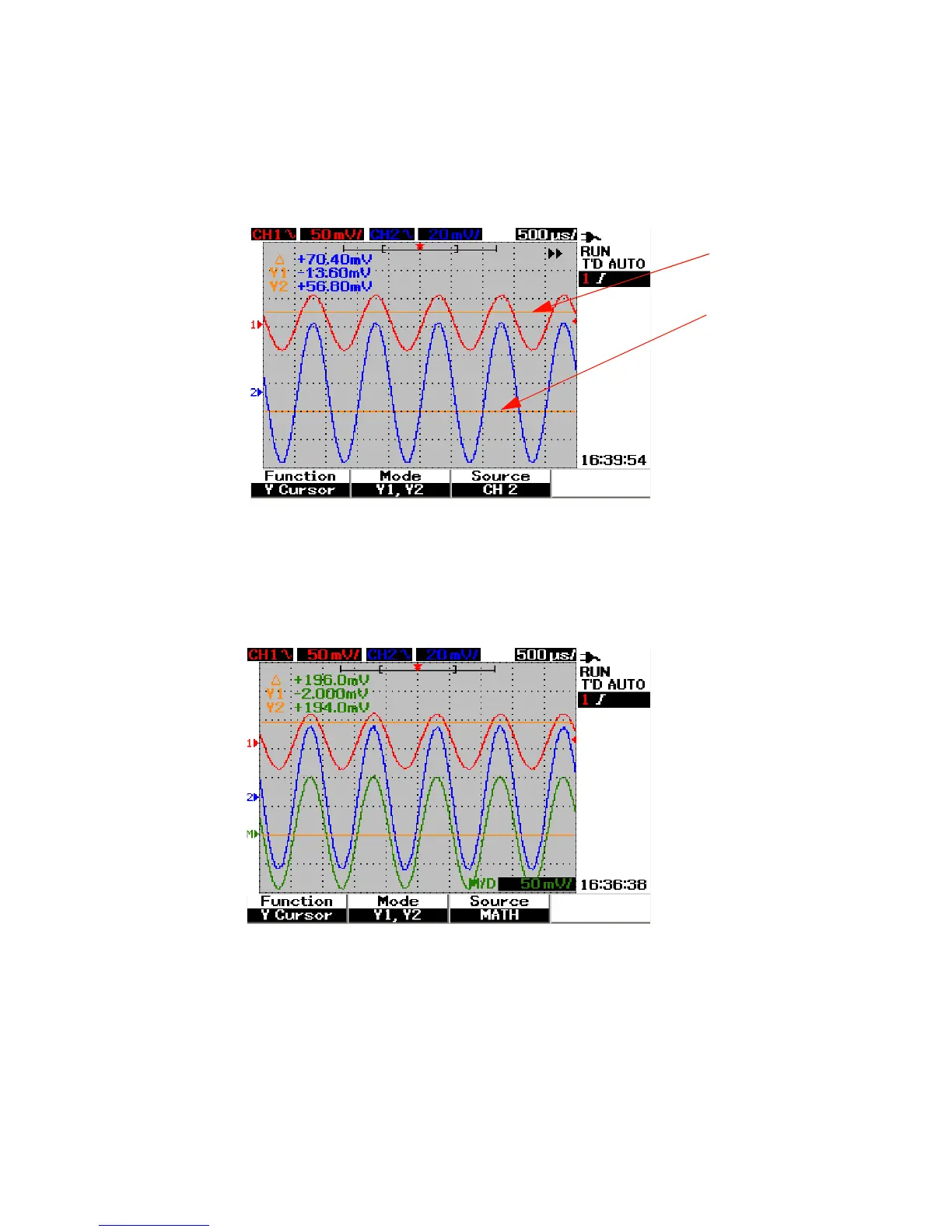

Figure 3-35 Y-cursor measurement for channel 2 signal with X1 and X2 cursor lines
6 In Figure 3- 35, math function is selected and the result is displayed in
red at the top right of the waveform display area.
Figure 3-36 Math function for Y-cursor measurement
Y1 cursor line
Y2 cursor line
