4
Using the Digital Mu
ltimeter Functions
104
Agilent U1602B/U1604B U
ser’s and Service Guide

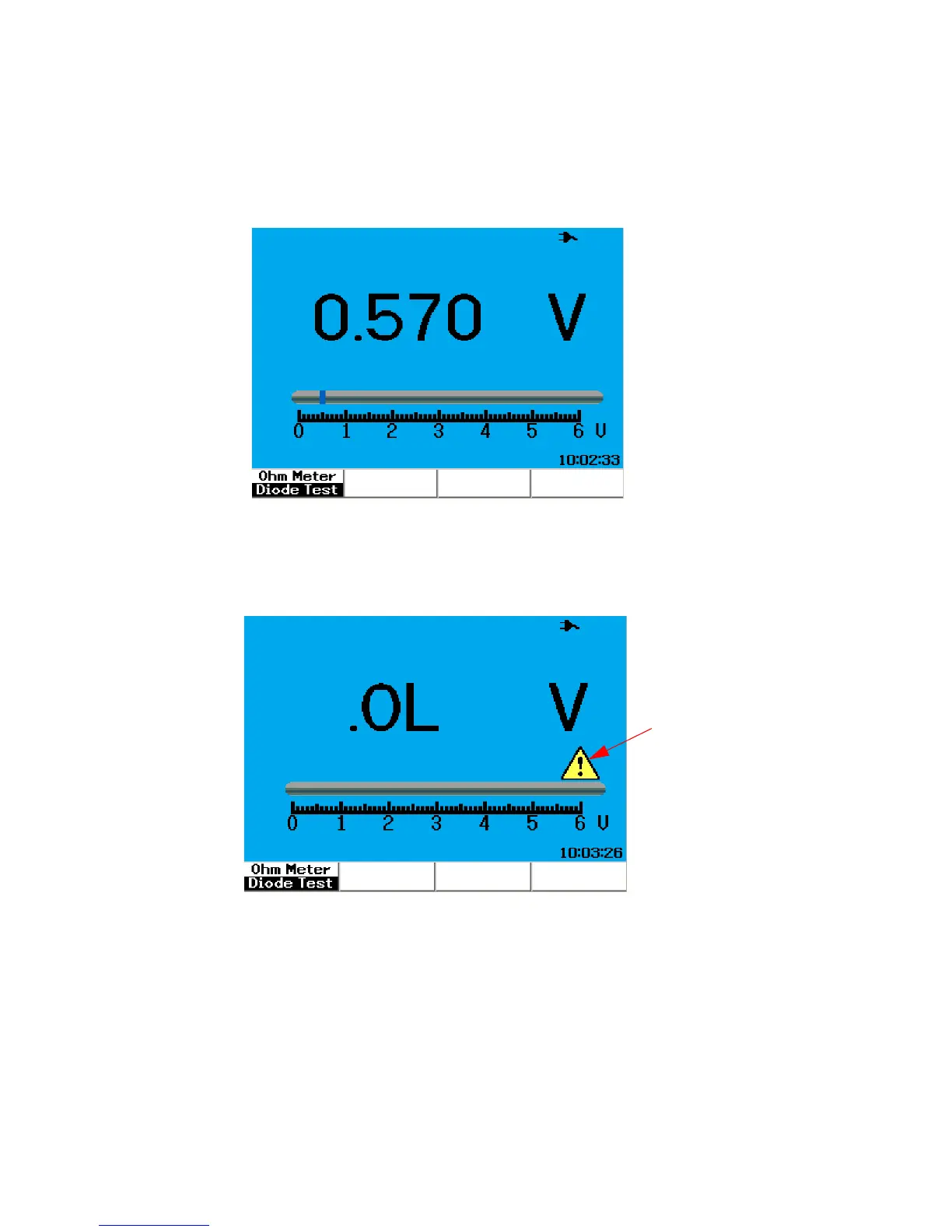

Figure 4-5
Diode in forward bias condition
Figure 4-6
Diode in op
en condition
A caution symbol appears in
open loop cond
ition
141
143
Table of Contents
Table of Contents
17
Safety Summary
6
Safety Symbols
7
General Safety Information
9
Figures
25
Table of Contents
31
1 Getting Started
33
To Charge a Battery
33
To Power on Instrument
33
To Inspect Package Contents
34
Standard Shipped Components
35
Optional Accessories
36
Power Cord Types
36
To Charge a Battery
37
Battery Charging
38
To Power on Instrument
39
To Reset to Default Factory Settings
39
Factory Setup
40
To Perform Self-Calibration
41
To Set Date and Time
42
Self-Calibration Dialog Box
42
Select the Date Format
43
Date and Time Setting
43
To Set Auto-Power off
44
Auto-Power off Function
44
To Select Quick Help Language
45
To Adjust Contrast of Display
46
Adjust Display Contrast
46
To Compensate Scope Probe
47
Connection for Scope Probe Compensation
47
Figure 1-11. a 10X Scope Probe with over Compensation, Adjust the
48
Front Panel and Displays Overview
51
Front Panel Overview
51
Multimeter Display Overview
51
2 Front Panel and Displays Overview
52
Front Panel Overview
52
Oscilloscope Display Overview
57
Multimeter Display Overview
59
3 Using the Scope Functions
61
Vertical Controls
62
Channel Selection for Waveform Display
62
Vertical System Setup
64
To Change Vertical Reference Ground Position
64
To Center the Waveform on the Display
65
To Change Vertical Sensitivity
66
Channel Coupling Control
67
AC Channel Coupling
67
DC Channel Coupling
68
Ground Channel Coupling
68
Probe Attenuation Control
69
Invert Control
70
Horizontal Controls
72
Vertical System Setup
72
To Change Horizontal Scale Factor
72
To Set Delay of the Waveforms
73
To Change Trigger Point Indicator
74
Horizontal Mode Functions
75
Time Base Mode
75
Main/Zoom Mode
76
Roll Mode
78
Trigger Controls
79
Trigger Modes
79
Auto Trigger Mode
80
Normal Trigger Mode
80
Single Trigger Mode
80
Trigger Types
81
Edge Trigger
81
Pattern Trigger
84
Video Trigger
87
Average Acquisition Mode
88
Average Acquisition Mode
89
Normal Acquisition Mode
89
Peak Detection Mode
90
Waveform Controls
88
Display Controls
91
Display Types
91
Display Contrast
92
Graticule
93
Persistence
93
Automatic Measurement
94
To Perform Automatic Measurements
95
Time Automatic Measurements
96
Duty
96
Width
97
Frequency
97
Rise Time
97
Fall Time
98
Period
98
Voltage Automatic Measurements
98
Mean
98
Mean Cycle
98
Amplitude
98
Top
98
Base
99
Maximum
99
Minimum
99
Peak-To-Peak
99
Phase and Delay
100
Phase
100
Delay
101
Preshoot and Overshoot
101
Preshoot
101
Overshoot
102
Cursor Measurement Controls
103
X-Cursor Measurement
104
Y-Cursor Measurement
107
Math Functions Control
110
Dual Waveform Math - Add, Subtract
110
Add (CH1 + CH2)
111
Subtraction (CH1 - CH2, CH2 - CH1)
112
FFT (Fast Fourier Transform)
113
Source
113
Axis
113
Window
114
Save and Recall Controls
115
Save and Recall Controls Without USB Flash Memory Device
116
To Save and Recall Waveform
118
To Erase Setup
120
To Erase Waveform
121
To Restore Factory Setup
122
Save and Recall Controls with USB Flash Memory Device
124
To Save Waveform
125
To Load Waveform
125
To Erase Waveform
126
To Clear Waveform
127
Autoscale and Run/Stop Controls
128
Autoscale
128
Autoscale Conditions
128
Run/Stop Controls
129
Utility Controls
130
Auto-Power off Control
130
Language Selection
131
USB Flash Memory On/Off
131
Date and Time Setting
131
Self-Calibration
131
Probe Calibration
132
Low Battery Mode
132
Mute Function
133
4 Using the Digital Multimeter Functions
135
4 Using the Digital Multimeter Functions
136
Voltmeter
136
Ohmmeter
138
Resistance Measurement
138
Relative Function
138
Continuity Test
138
Diode Test
138
Continuity Test
140
Diode Test
141
Capacitance Measurement
143
Auxiliary Meter
144
Temperature Meter
144
Ampere Meter
146
Humidity Meter
147
Pressure Meter
148
Relative Function
150
Automatic Measurement in Multimeter Mode
152
Restart Test
153
Auto-Range Mode
153
5 Using the Data Logger Functions
155
Restart Test
155
Data Logger Function
155
Automatic Measurement in Data Logger Mode
155
Data Logger Function
156
Automatic Measurement in Data Logger Mode
159
CSV Saving Function and Interval Setting
159
Restart Test
160
6 Service and Maintenance
162
Warranty Services
162
Standard Warranty (Worldwide)
162
Accessories Warranty
163
Standard Calibration Service (Optional)
163
Returning Instrument to Agilent Technologies for Service
164
Cleaning
165
Basic Troubleshooting Hints
165
7 Performance Tests
170
Performance Test Interval
171
Performance Test Record
171
Warming up before Testing
171
List of Test Equipment
172
List of Test Equipments for Scope Performance
172
List of Test Equipment for Multimeter Performance
173
Oscilloscope Performance Verification Tests
174
Voltage Measurement Accuracy Verification Test
174
Settings Used to Verify Voltage Measurement
175
Bandwidth Verification Test
177
Signal Generator Frequency Setting
178
Horizontal Dt and 1/Dt Accuracy Verification Test
179
Trigger Sensitivity Verification Test
180
Multimeter Performance Verification Tests
182
DC Voltage Verification Test
182
DC Volts Verification Test
183
AC Voltage Verification Test
184
AC Volts Verification Test
184
Resistance Verification Test
185
Capacitance Verification Test
186
Diode Verification Test
187
Continuity Verification Test
188
Self-Calibration
189
Self-Calibration Error Code
190
Self-Calibration Error Code
191
8 General Disassemble
196
Mechanical Disassemble
197
To Remove Stand
198
To Remove Battery Pack
199
To Replace Battery Pack
200
To Remove Handler
203
To Remove Front and Rear Casing
204
To Remove Keypad
206
To Dismantle System Boards
207
To Remove LCD Display
208
Replacement Parts
209
Replacement Part List
209
9 Characteristics and Specifications
210
Characteristics
210
Environmental Conditions
210
Specifications
211
Warranted Specifications
211
Characteristics
214
Sampling Rate
219
General Characteristics
220
Environmental Conditions
222
Pollution Degree
222
Measurement Category
223
Measurement Category Definitions
223
