General Disassemble 8
162 Agilent U1602B/U1604B User’s and Service Guide
1 Remove two screws at the location shown in Figure 8- 3 and open up
the battery cover.

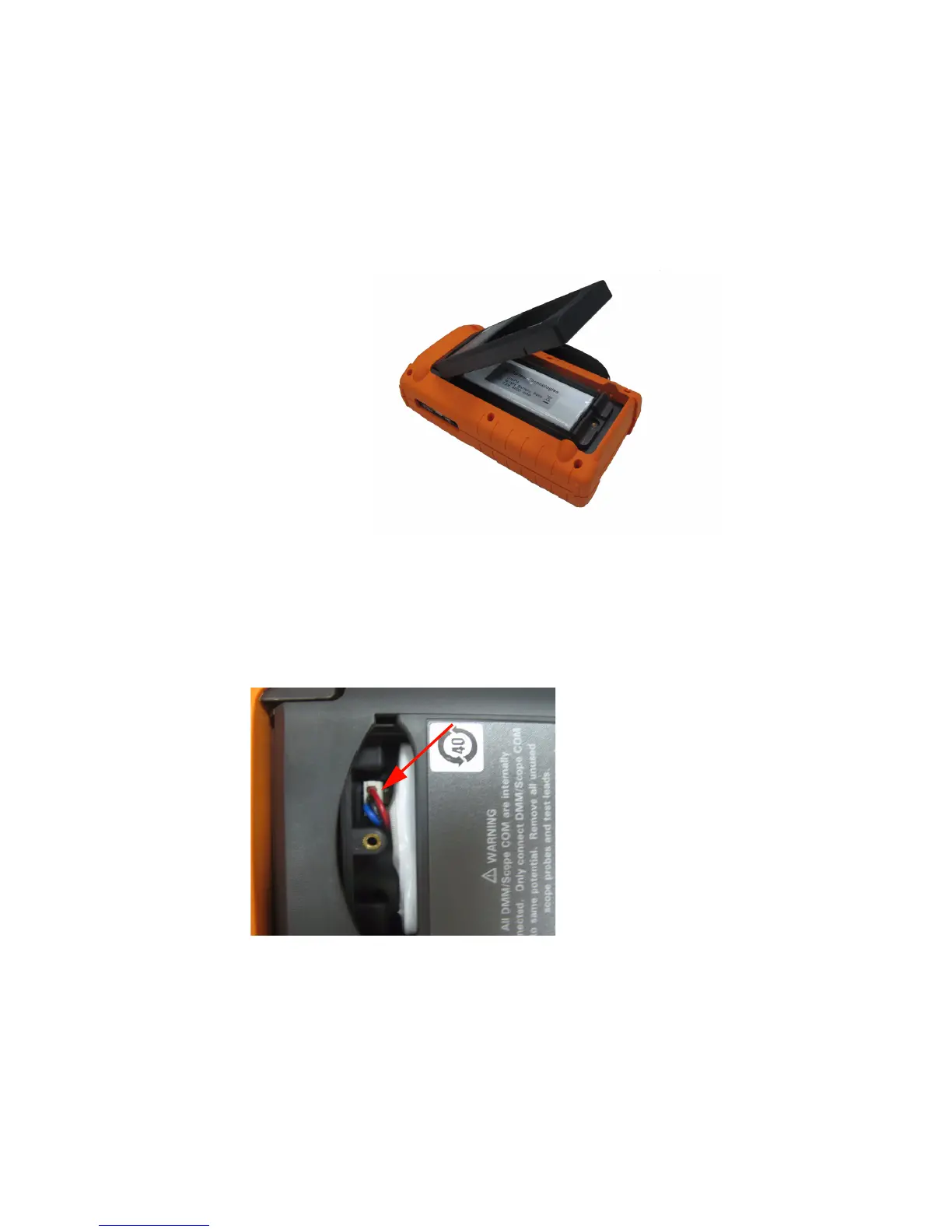

Figure 8-5 Remove battery pack cover without removing stand
2 Use tweezer to unplug the battery pin connector gently through the
stand hole as shown in Figure 8- 6.
Figure 8-6 Unplug 2-wire connector with a tweezer.
3 Install a new battery pack and proceed to reassemble the battery pack
in reverse instructions.
