E16 Door Phone Administrator Guide
9 Relay Switch Setting
9.1
Relay Switch Setting

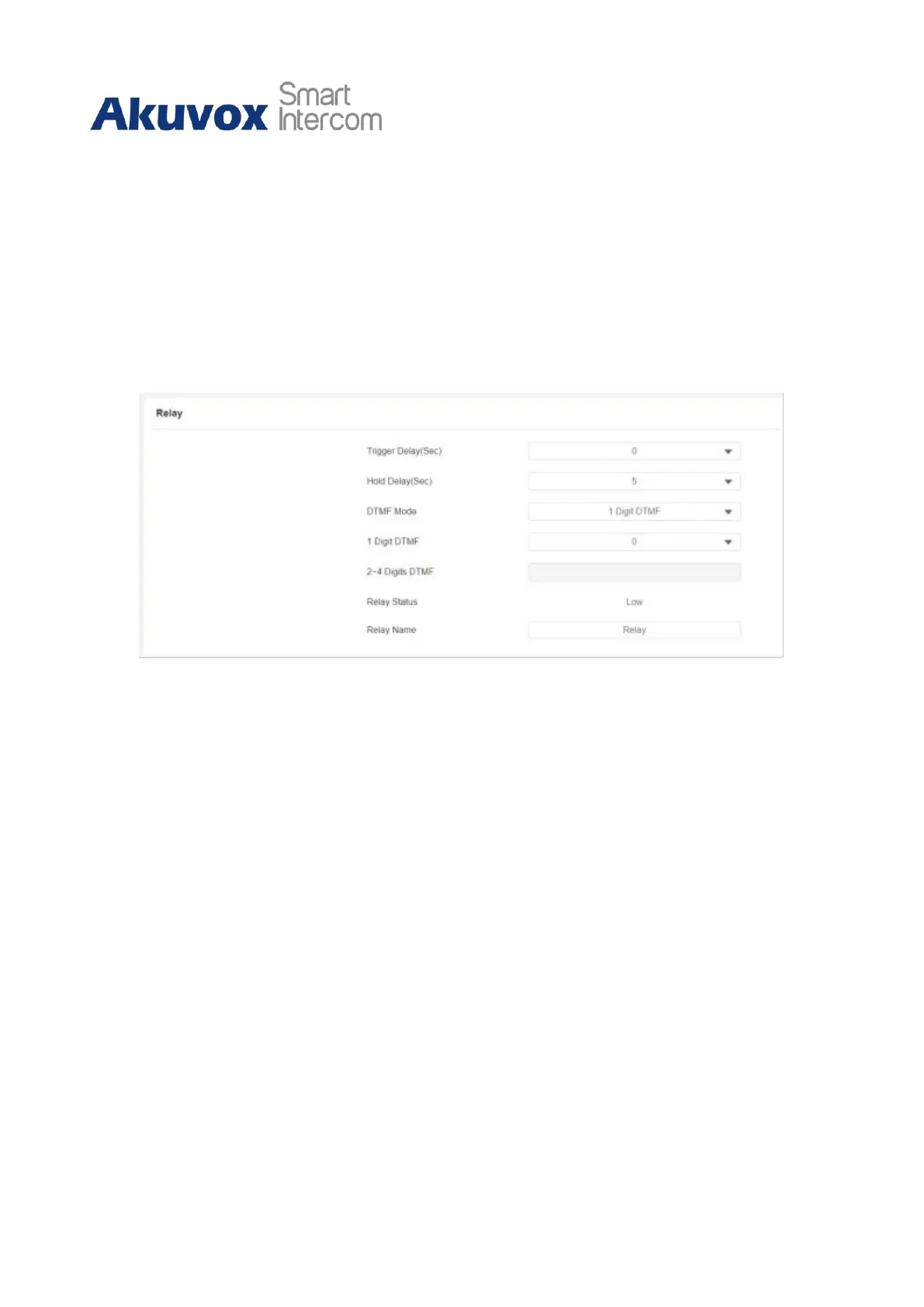

You can configure the relay switch(es) and DTMF for the door access on the web Access
Control > Relay > Relay interface.
Parameter Set-up:
•
Trigger Delay (Sec): set the relay trigger delay timing (ranging from 1-10 Sec). For
example, if you set the delay time as 5 sec, then the relay will not be triggered until 5
seconds after you press the Unlock tab.
•
Hold Delay (Sec): set the relay hold delay timing (ranging from 1-10 Sec). For
example, if you set the hold delay time as 5 sec, then the relay will stay triggered for 5
seconds after the door is It means the door will stay open for 5 seconds.
•
DTMF Mode: select the number of DTMF digits for the door access control (Ranging
from 1-4 digits) For example, you can select a 1-digit DTMF code or 2-digit DTMF
code, etc., according to your need.
•
1-Digt DTMF: set the 1-digt DTMF code within range from (0-9 and *, #).
•
2~4 Digits DTMF: set the DTMF code according to the DMTP Option. For example,
you are required to set the 3-digits DTMF code if DTMP Mode is set as 3-digits.
