www.akuvox.com

E16 Door Phone Administrator Guide

Note

•

Firmware files should be in .zip format for an upgrade.

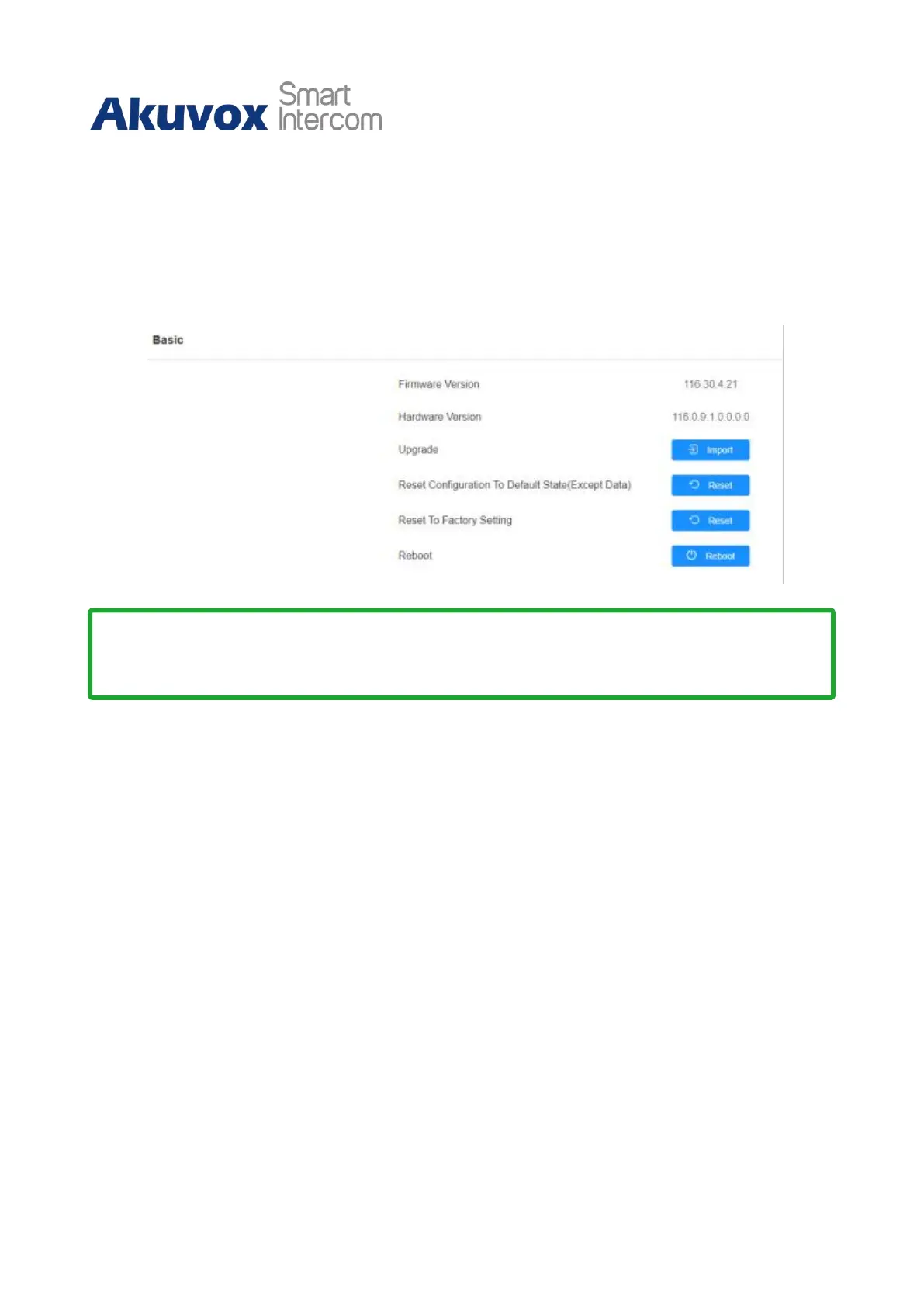

16 Firmware Upgrade

E16 series door phones can be upgraded on the device web interface. You can go to

System > Upgrade.
