Akuvox E16C User Manual

www.akuvox.com
E16 Door Phone Administrator Guide
61
• Enabled: enable or disable the Bluetooth. Bluetooth is turned off by default.
• RSSI Threshold: select the signal receiving strength from -85~-50db in absolute
terms. The higher value is, the greater strength it has. The default value is 72db in
absolute terms.
• Open Door Interval: select the time interval between every two Bluetooth door
accesses.

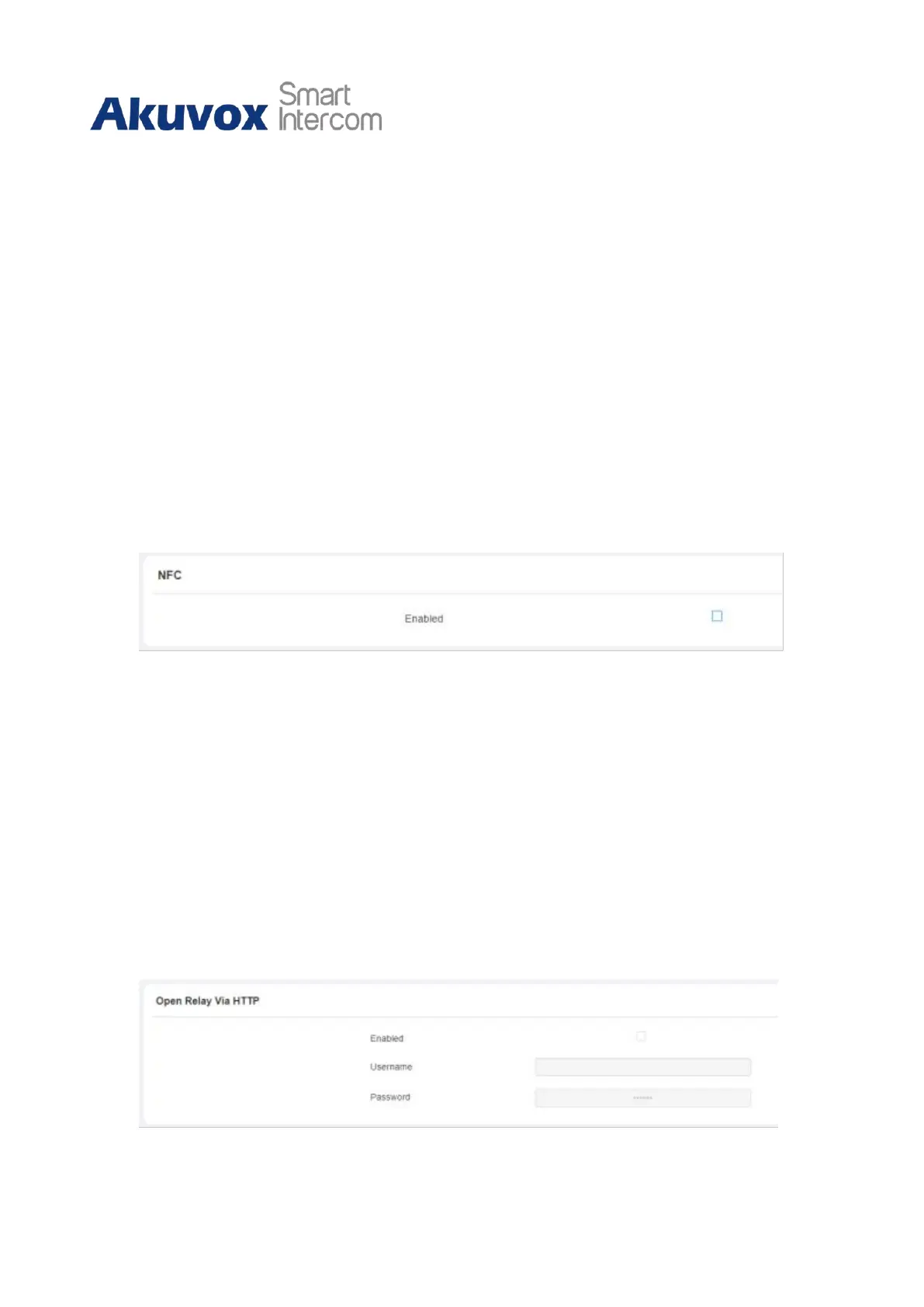

11.7 Unlock by NFC
You can also gain door access by mobile phone with NFC which is used together with
Akuvox SmartPlus. You can keep the mobile phone closer to the door phone for door
access. Path: Access Control > Card Setting> NFC.
Parameter Set-up:
 Enable: enable the NFC function if you want to unlock the door via NFC.
11.8 Unlock by HTTP Command on Web Browser
You can unlock the door remotely without approaching the device physically for the door
access by typing in the created HTTP command (URL) on the web browser to trigger the
relay when you are not available by the door for the door access. To configure the
configuration on web Access Control > Relay > Open Relay via HTTP interface.

Akuvox E16C Specifications

General

Color	Yes
Speakerphone	No
Connectivity technology	Wired
Number of displays supported	-
Display diagonal	5 \
Display resolution	1280 x 720 pixels
Display technology	IPS
Proper use	Indoor
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP65
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Megapixel	2 MP
Indoor unit power type	DC
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	27.5 mm
Width	88 mm
Height	192 mm
