Akuvox E16C User Manual

www.akuvox.com
E16 Door Phone Administrator Guide
47
Parameter Set-up:
• Start Date- End Date: set the date range of the validity of the door access.

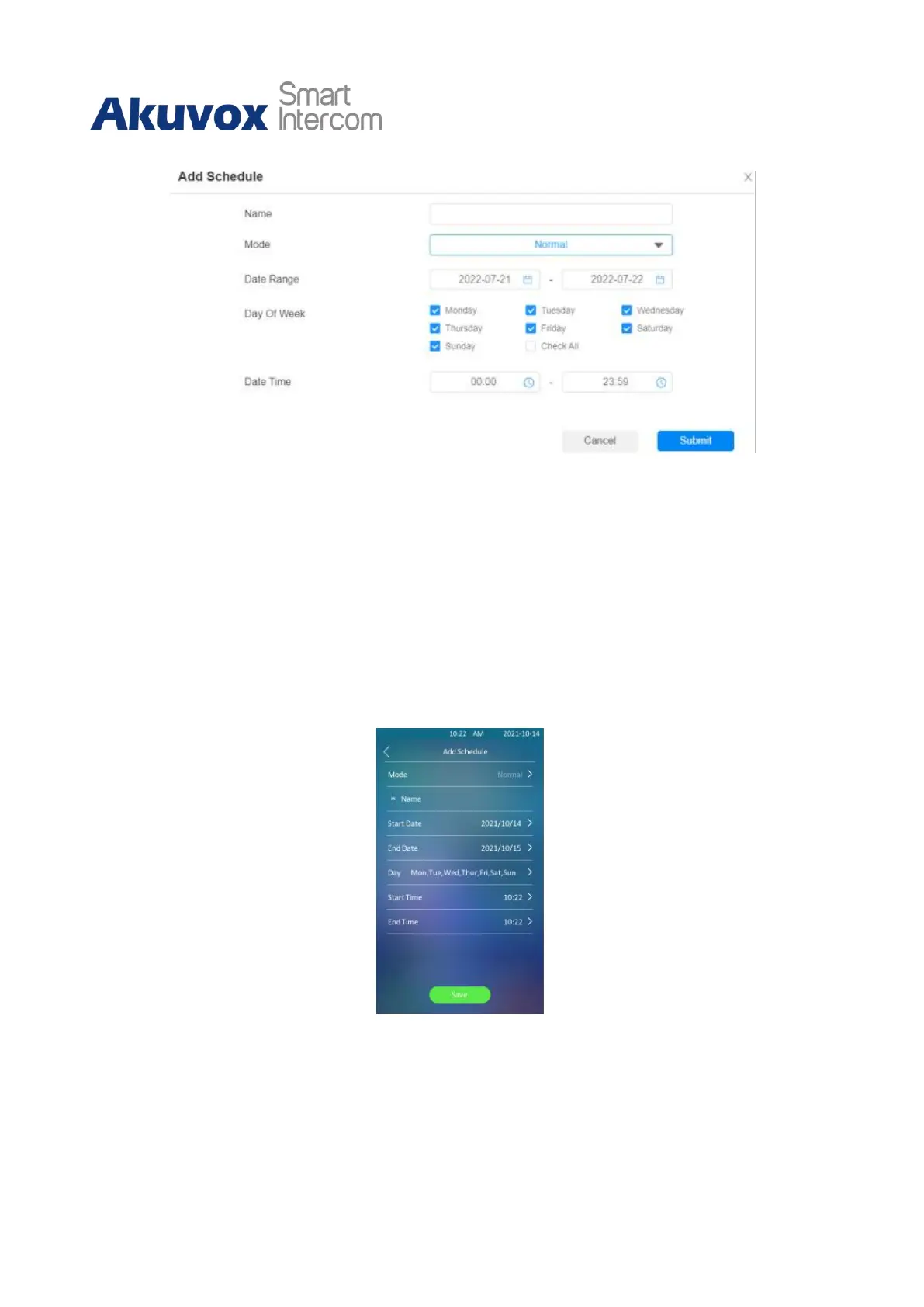

10.1.2 Create Door Access Schedule on the Device
You can also create a door access schedule on the device. You can go to Schedule > Add
Schedule.

Akuvox E16C Specifications

General

Color	Yes
Speakerphone	No
Connectivity technology	Wired
Number of displays supported	-
Display diagonal	5 \
Display resolution	1280 x 720 pixels
Display technology	IPS
Proper use	Indoor
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP65
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Megapixel	2 MP
Indoor unit power type	DC
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	27.5 mm
Width	88 mm
Height	192 mm
