E16 Door Phone Administrator Guide
17
5.5.1 Volume Configuration
You can configure the Mic volume, speaker volume, and temper alarm volume according to
your need for intercom-based audio&video communication. Moreover, you can also set up
the tamper alarm volume when unwanted removal of the door phone occurs.

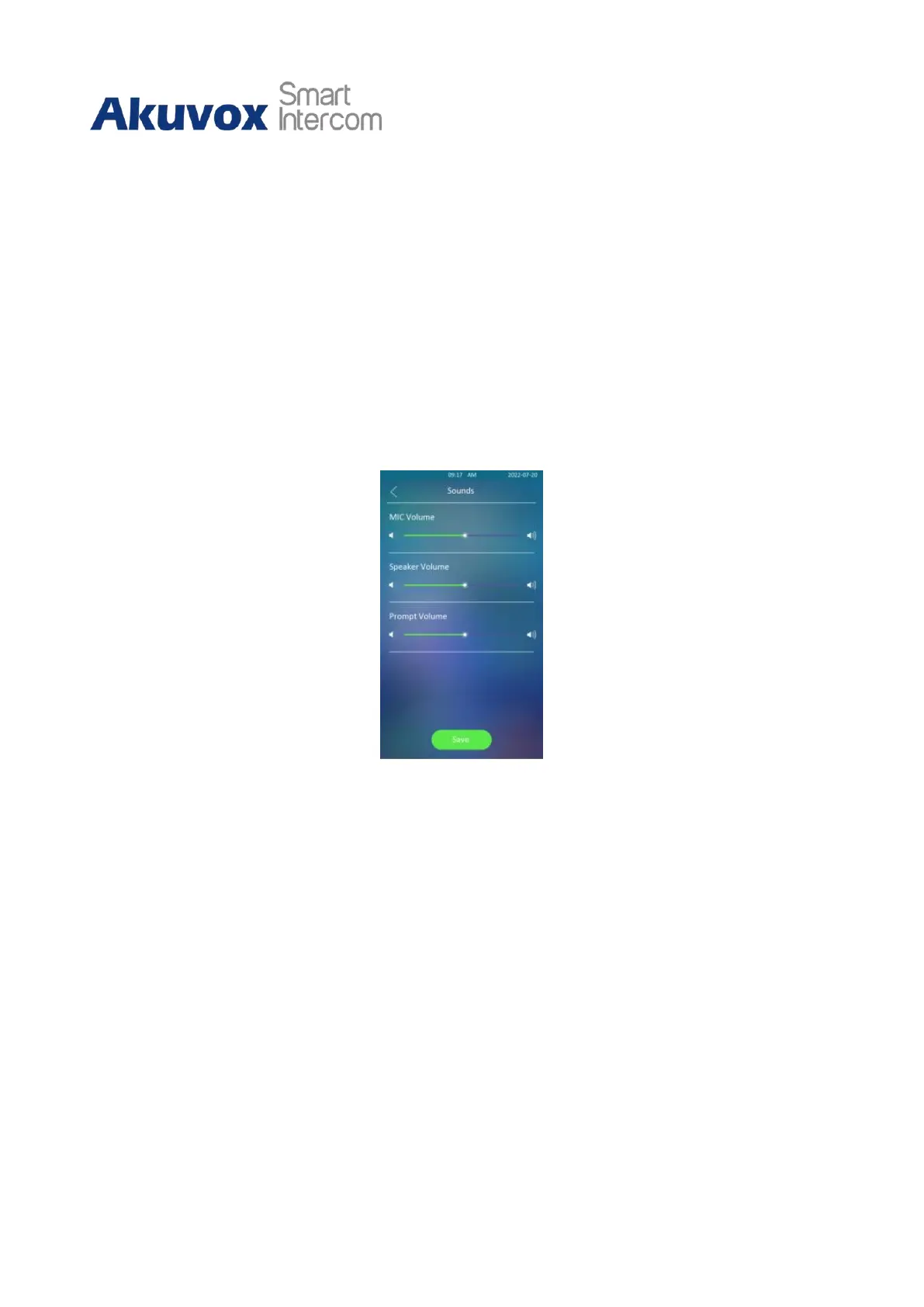

5.5.1.1 Configure Volume on the Device
You can adjust the microphone volume, speaker volume, and prompt volume on the
device. Path: Display&Sounds > Sounds.
Parameter Set-up:
• Mic Volume: adjust the microphone volume according to yourneed.
• Speaker volume: adjust the loudspeaker volume according to yourneed.
• PromptVolume: adjust the prompt volume, which includes various types of prompt
sound for door open success and failure, ringback, temperature measurement sound,
etc.
5.5.1.2 Configure Volume on the Web Interface
On the web interface, you can set the temper alarm volume, Mic volume, speaker volume,
and prompt volume. Path: Device > Audio > Volume Control.

Akuvox E16C Specifications

General

Color	Yes
Speakerphone	No
Connectivity technology	Wired
Number of displays supported	-
Display diagonal	5 \
Display resolution	1280 x 720 pixels
Display technology	IPS
Proper use	Indoor
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP65
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Megapixel	2 MP
Indoor unit power type	DC
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	27.5 mm
Width	88 mm
Height	192 mm
