Entity To display the entity of the called set (if an entity name is pro-
grammed in management).
Assoc To call the associate of the called party set.

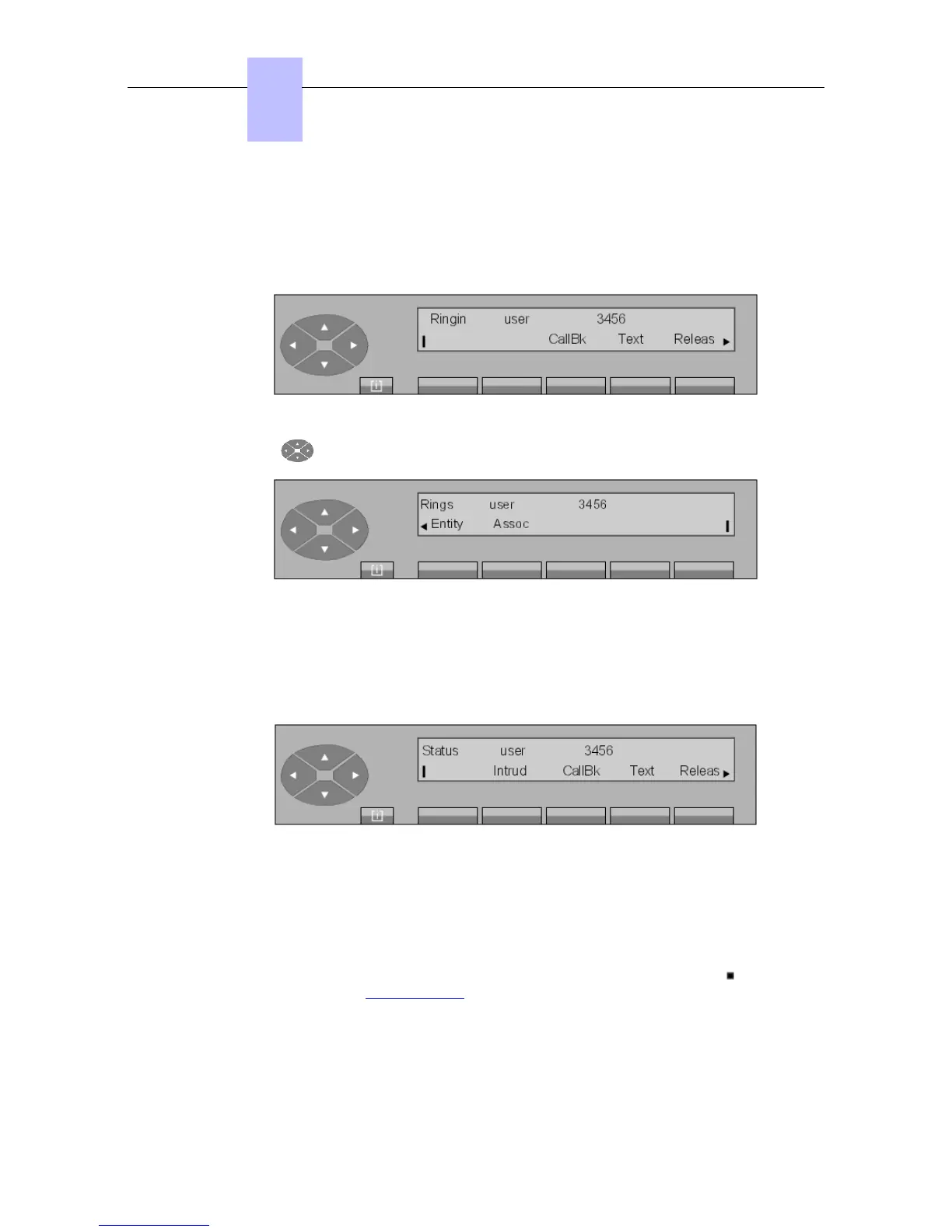

Press the Ring key (or Call key) to display the following screen:
Press the key, the screen shows:
The procedure is then the same as for a free set.
2.3.3.2 The busy set is a single line set (or multiline with all lines busy)
The user is in conversation with a party. After dialing the directory number of the called party,
the display shows:
The Status field shows:
- BsyInt if the set is internally busy.
- BusyEx if the set is externally busy.
The second line displays the functions that can be activated from this screen:
BargIn To intrude (barge-in) on the conversation. To exit, press the BrgnOf key
(see Manual answer ).
CallBk To store a call-back request.
Chapter
2
! &$
2-10
