The instrument will then display the Ready for passive test screen (Refer Figure 20).
The screen will prompt to either Blow or Press the Test key to take the test. Pressure
Activated Passive testing is using the Blow option.

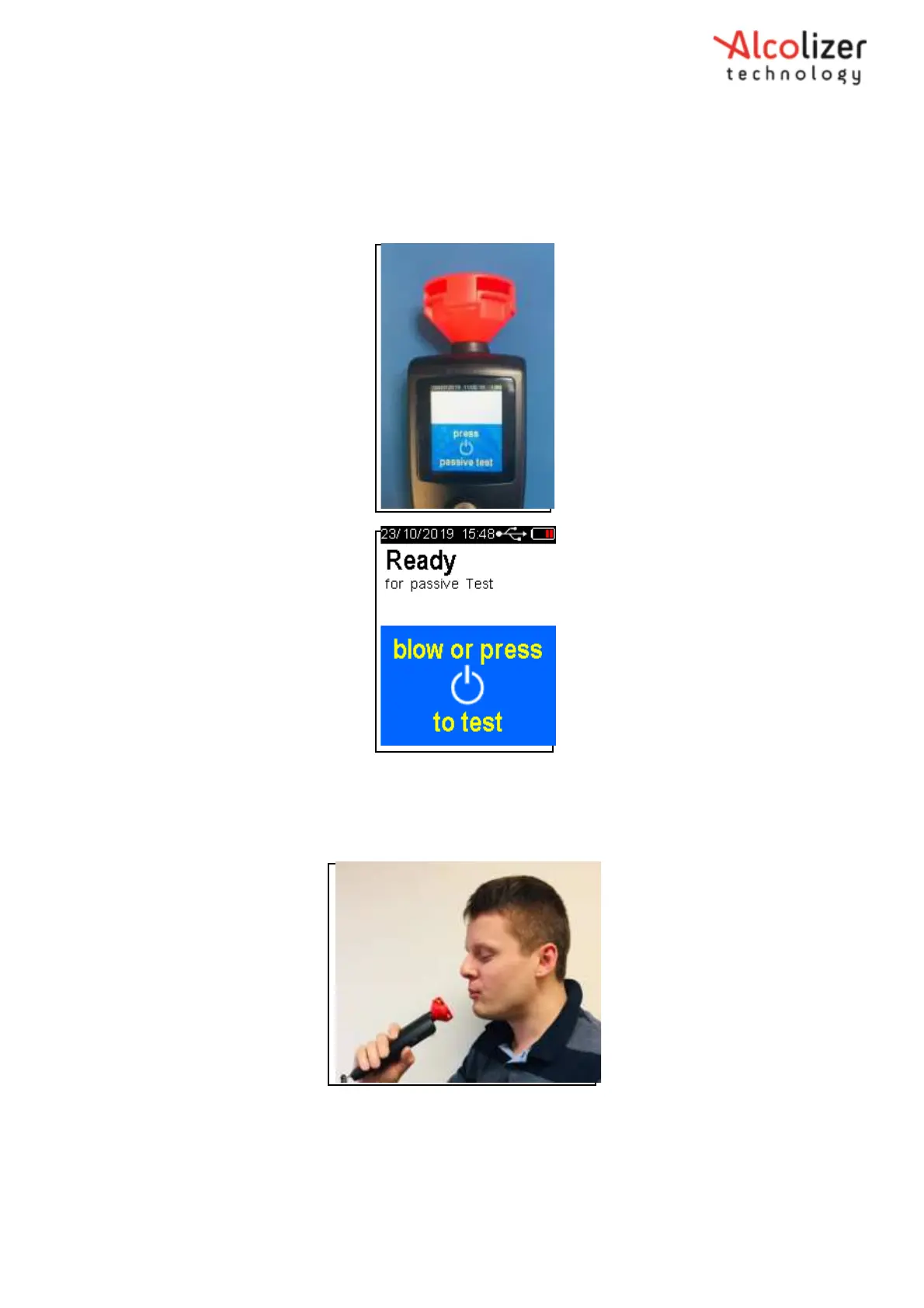

Figure 19 – LE5 with Passive Cup attached
Figure 20- Ready for Passive Test Message
Hold the instrument no further than 50mm front of the test subject’s mouth; so that
the subject is breathing directly into the instrument’s sample inlet port (Refer
Figure 21).
Figure 21- Providing a Passive Sample
Blow firmly into the passive cup, listening until a long beep is heard indicating
the breath collection is complete. Stop blowing.
The passive test will have 3 short beeps and clicks followed by a longer beep.
