20 Rockwell Automation Publication 1769-UM011H-EN-P - April 2012
Chapter 2 Install the 1769-L3x Controllers

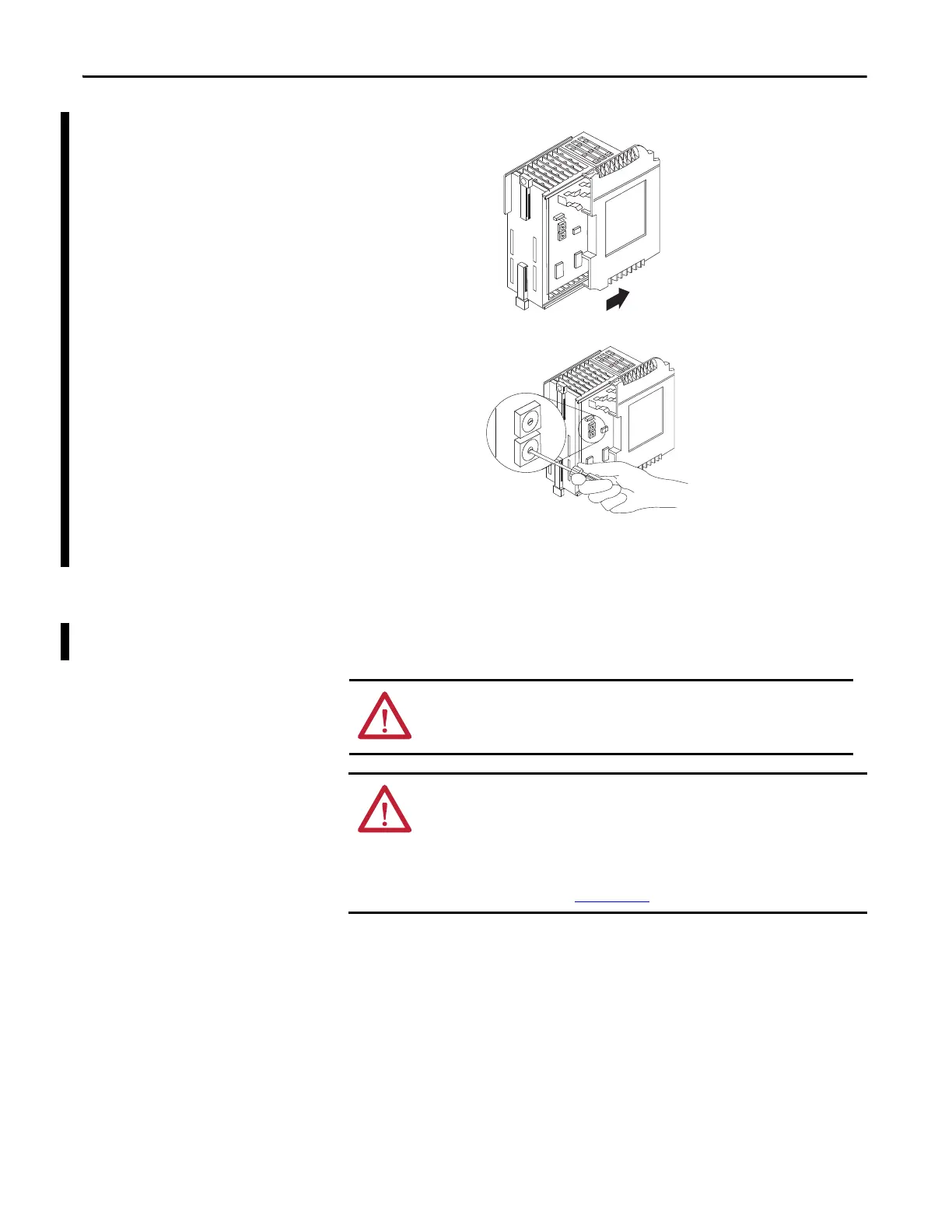

1. Slide the side cover forward.
2. Use a small screwdriver to set the node address via the controller switches.
3. Write the node address on the front panel overlay after setting the node
address switches.
Connect the 1769-BA Battery
The controller is shipped with the 1769-BA battery that is packed separately. To
connect the battery, follow this procedure.
43860
0
5
1
2
3
4
6
7
9
8
0
5
1
2
3
4
6
7
9
8
31504-M
ATTENTION: The 1769-BA battery is the only battery you can use with the
1769-L32E and 1769-L35E controllers. The 1747-BA battery is not compatible
with the 1769-L32E and 1769-L35E controllers and may cause problems.
WARNING: When you connect or disconnect the battery, an electrical arc can
occur. This could cause an explosion in hazardous location installations. Be sure
that power is removed or the area is nonhazardous before proceeding.
For safety information on the handling of lithium batteries, including handling and
disposal of leaking batteries, see Guidelines for Handling Lithium Batteries
Technical Data, publication AG-5.4NOV04
.
