Rockwell Automation Publication 1769-UM011H-EN-P - April 2012 79
Manage Controller Communication Chapter 5
Connections Example
In this example system the 1769-L35E CompactLogix controller:
• controls local digital I/O modules in the same chassis.
• controls remote I/O devices on a DeviceNet network.
• sends and receives messages to/from a ControlLogix controller on an
EtherNet/IP network.
• produces one tag that the 1794 FlexLogix controller consumes.
• is programmed via RSLogix 5000 programming software.

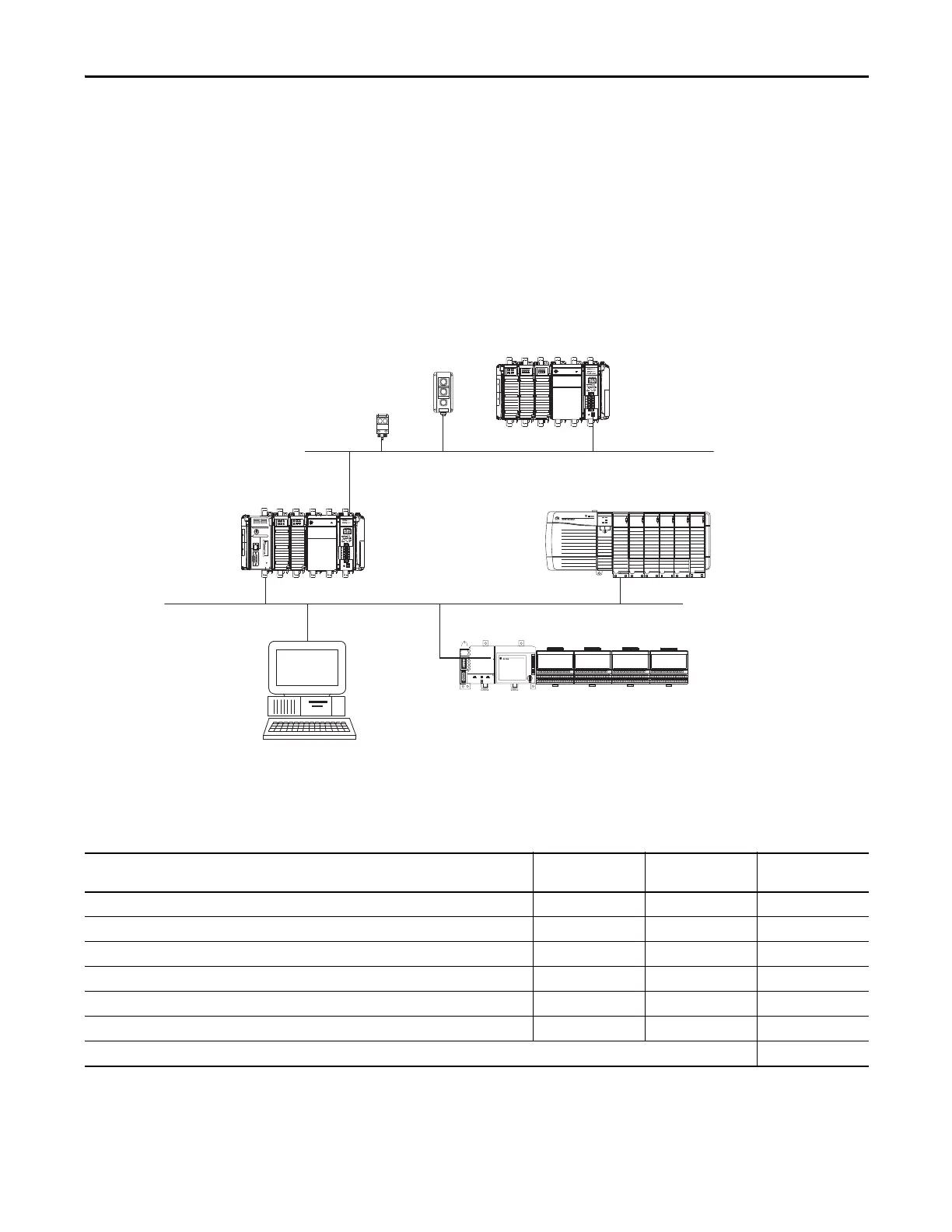

Table 17 - Example - CompactLogix System Connections
ControlLogix Controller with
1756-ENBT Module
1769-ADN Adapter with
CompactLogix I/O Modules
Redistation
Series 9000
Photoeye
DeviceNet Network
EtherNet/IP Network
Personal Computer
1769-L35E CompactLogix
with 1769-SDN
FlexLogix with 1788-DNBO DeviceNet Daughtercard
Table 18 - Example - CompactLogix Connection Types
Connection Type Device Quantity Connections per
Device
Total Connections
Controller to local I/O modules (rack-optimized) 2 1 2
Controller to 1769-SDN scanner module 1 2 2
Controller to built-in EtherNet/IP communication port (rack-optimized) 1 0 0
Controller to RSLogix 5000 programming software 1 1 1
Message to ControlLogix controller 2 1 2
Produced tag consumed by FlexLogix controller 2 1 2
Total 9
