60 Rockwell Automation Publication 1769-UM011H-EN-P - April 2012
Chapter 4 Communicate over Networks

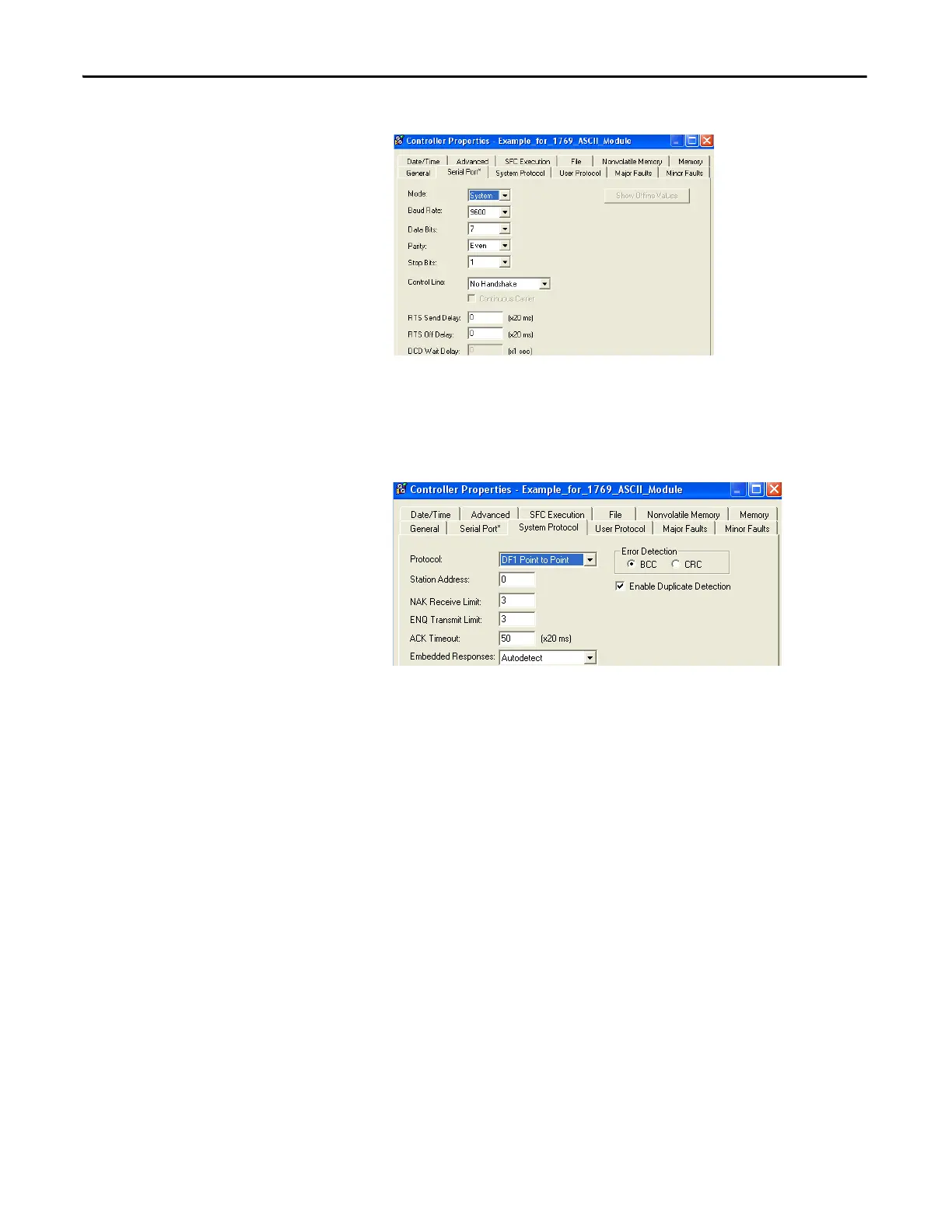

The Controller Properties dialog box appears.
2. Click the Serial Port tab.
3. From the Mode pull-down menu, choose System.
4. Specify communication settings.
5. Click the System Protocol tab.
6. From the Protocol pull-down menu, choose a DF1 protocol.
7. Specify DF1 settings.
