68 Rockwell Automation Publication 1769-UM011H-EN-P - April 2012
Chapter 4 Communicate over Networks
Step 1: Set Broadcast-Controller Properties
First, set the System Protocol by following these steps.
1. In the Controller Organizer, right-click on the controller and choose
Properties.

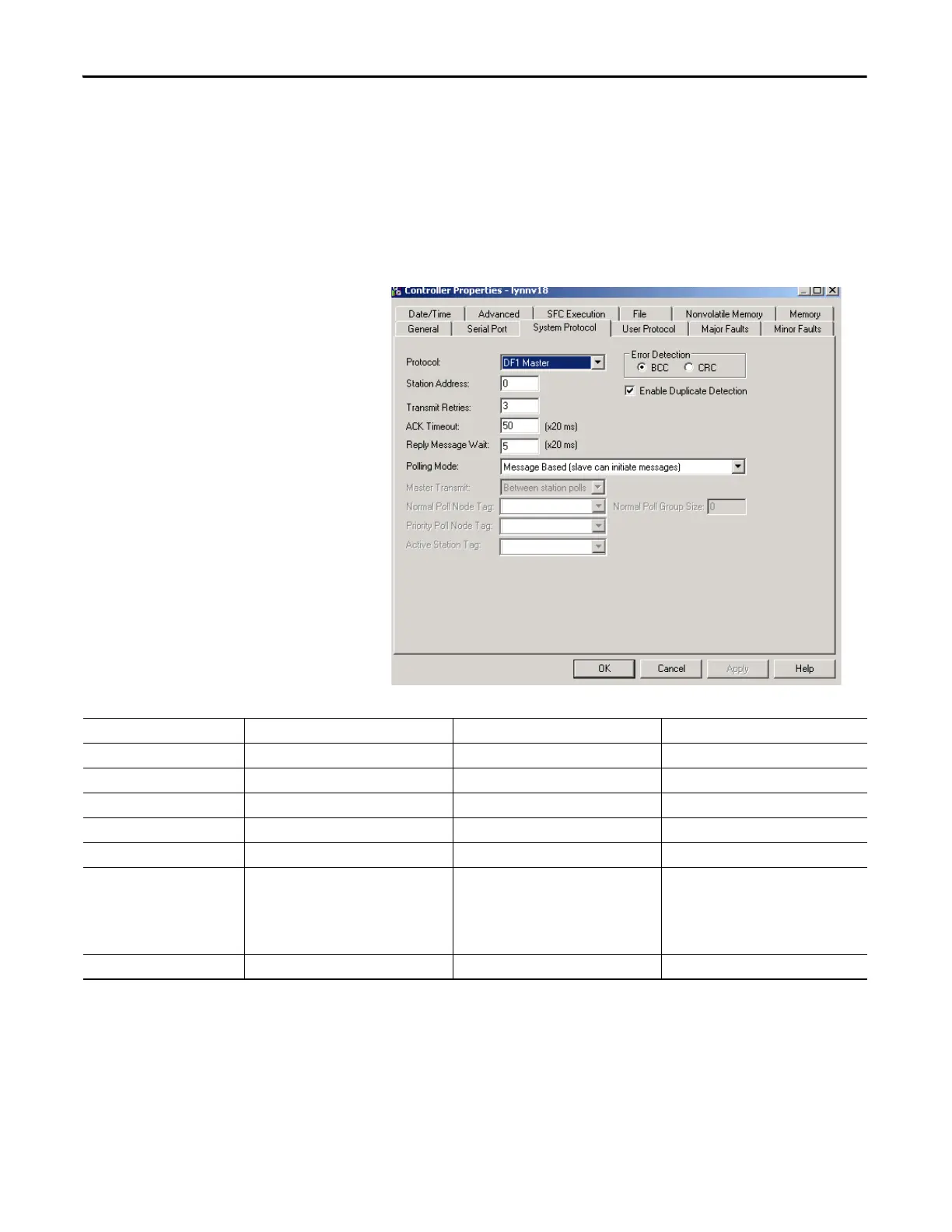

2. In the Controller Properties dialog box, from the System Protocol tab,
choose the settings for the controller, then choose OK.
Field DF-1 Master Protocol DF-1 Slave Protocol DF-1 Radio Modem Protocol
Station Address Controller station address number Controller station address number Controller station address number
Transmit Retries 3 3 N/A
ACK Timeout 50 N/A N/A
Slave Poll Timeout N/A 3000 N/A
Reply Message Wait 5 N/A N/A
Polling Mode Message: polls the slave by using the Message
instruction
Slave: initiates messages for slave-to-slave
broadcast.
Standard: schedules polling for the slave.
N/A N/A
EOT Suppression N/A Disable N/A
