Rockwell Automation Publication 1769-UM011H-EN-P - April 2012 85
Place, Configure, and Monitor I/O Chapter 6
first additional bank could contain fewer than 16 I/O modules This is
just one possible arrangement.
4. Verify that all banks have end caps.
1769-L35x
Processor
1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
28 29 30
Original Banks 0 and 1
Additional
Banks
Additional
Banks
End
Caps
End
Cap
I/O modules are numbered 1....30
Power
Supply
Power
Supply
Power
Supply

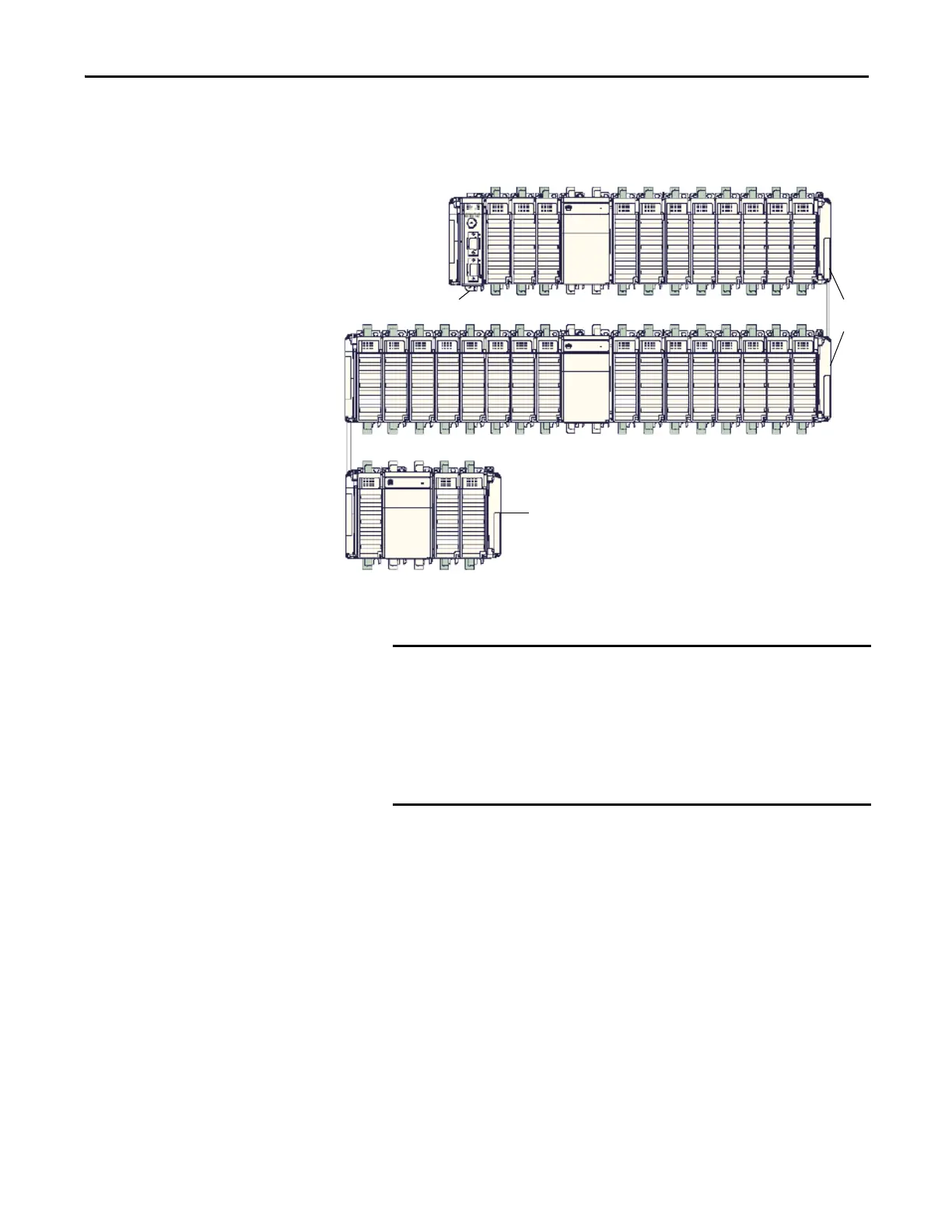

Example of Multi-Bank System
If you place and configure more I/O modules and I/O banks than
your controller can support, your system may run well for a period
of time. Nothing alerts you to the fact that you have exceeded your
controller’s capacity.
However, by exceeding your controller’s I/O capacity, you put your
system at risk of intermittent faults, the most common being Major
Fault Type 03 (I/O Fault) Code 23.
