104 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 10 Create a Project Using RSLogix 5000 Programming Software
1769-L32C or 1769-L35CR controllers
1769-L31 controller
No further configuration is needed as the default properties are sufficient for the examples in
this quick start.

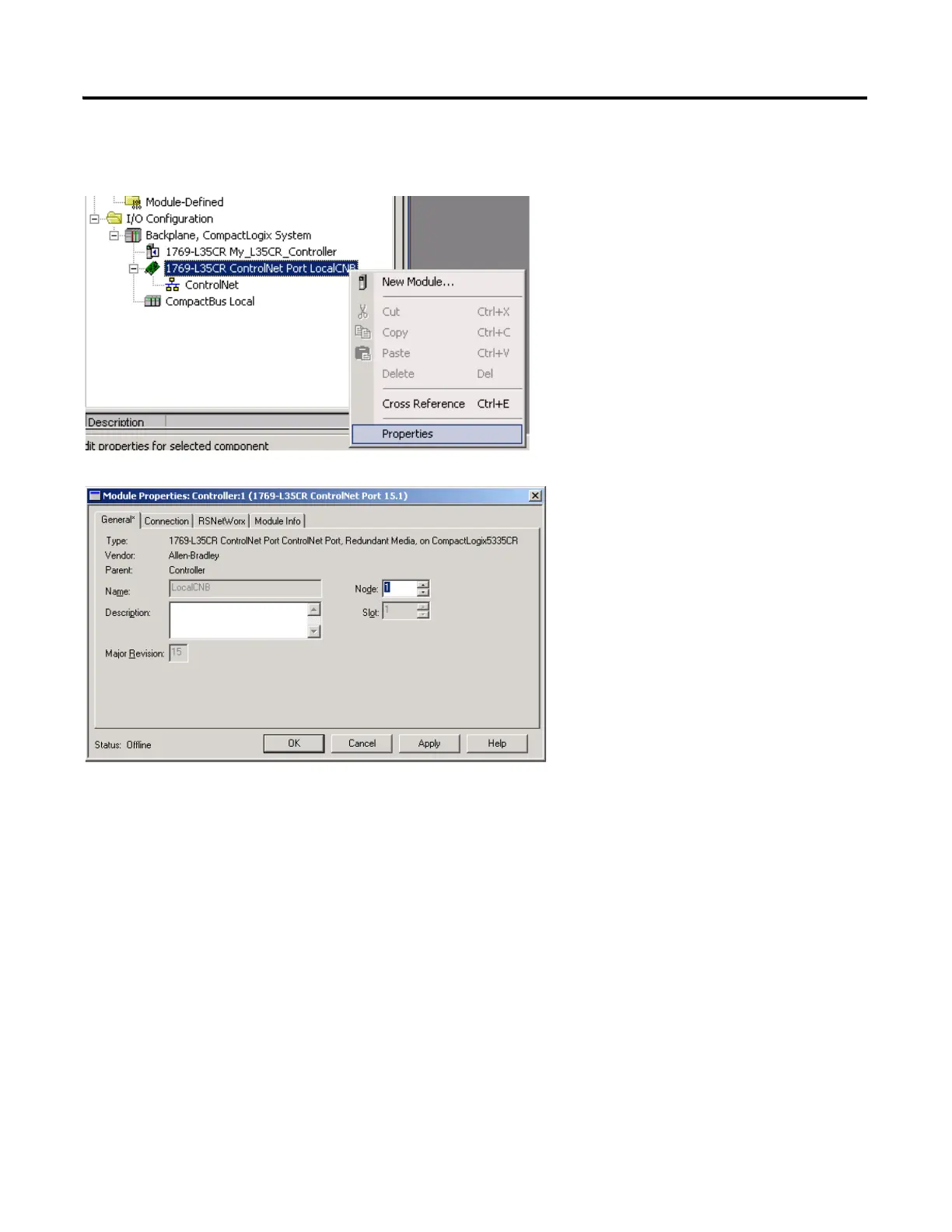

1. Expand the I/O Configuration
tree.
2. Right-click the ControlNet Port
and select Properties.
3. In the Node box, enter the
controller’s node address and
click OK.
