Allen-Bradley CompactLogix Series User Manual

154 Publication IASIMP-QS001C-EN-P - October 2009

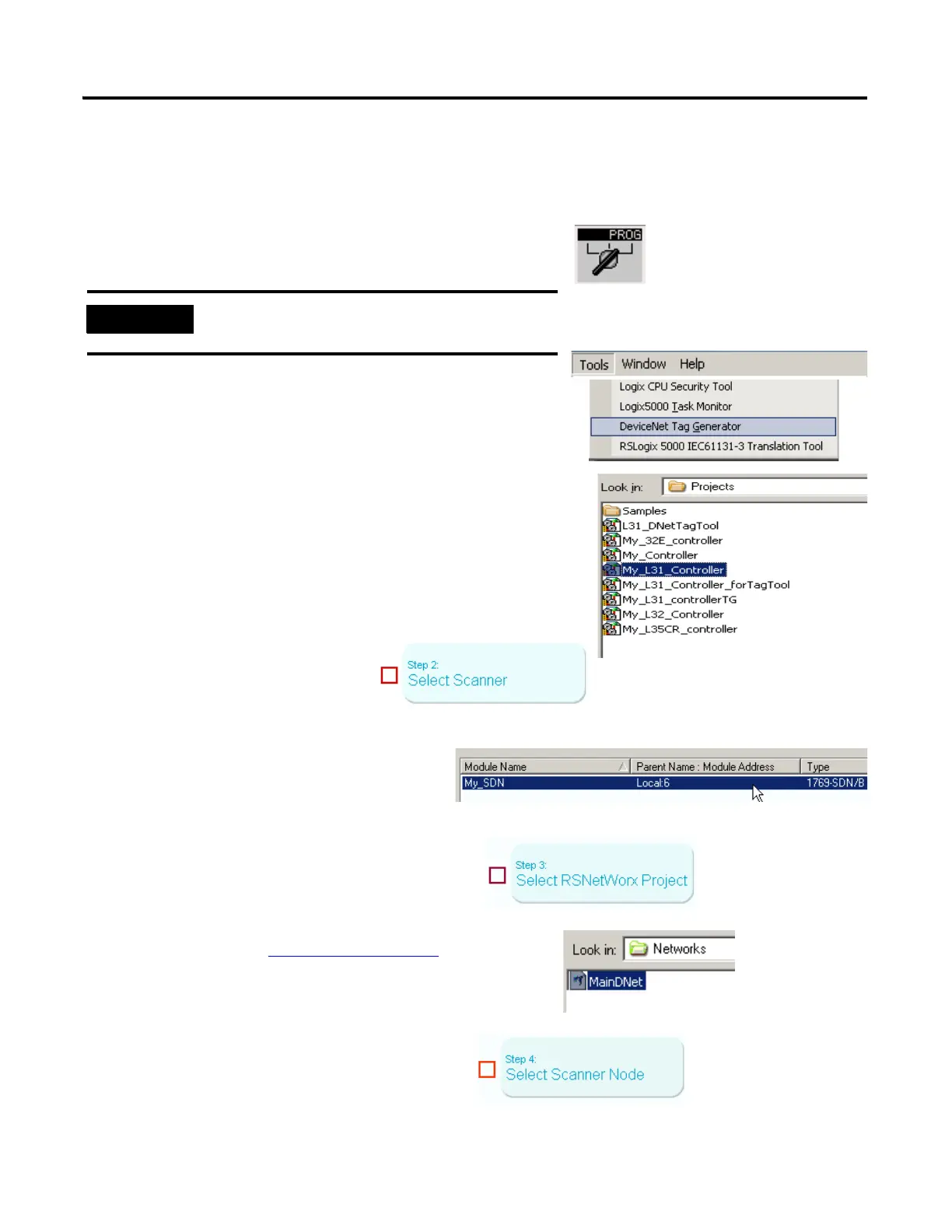

Chapter 12 Create a PowerFlex 70 Application
Create DeviceNet Tags
DeviceNet only
1. Switch the controller to Program Mode.
2. In RSLogix 5000 programming software, from the
Tools menu, choose DeviceNet Tag Generator.
3. Select the RSLogix 5000 project you are creating
tags for.
4. Click Select Scanner.
5. Select the 1769-SDN scanner that
scans the network where the drive is
located.
6. Click Select RSNetWorx Project.
7. Select DeviceNet configuration file
recorded on the Network Worksheet
.
8. Click Select Scanner Node.
IMPORTANT
Before running the DeviceNet Tag Generator, verify that
RSNetWorx for DeviceNet software is closed.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
