Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 183
Create a PowerFlex 40 Application Chapter 13
Test the PowerFlex 40 Tags
EtherNet/IP and ControlNet only
(for a DeviceNet network, skip to
page 185)

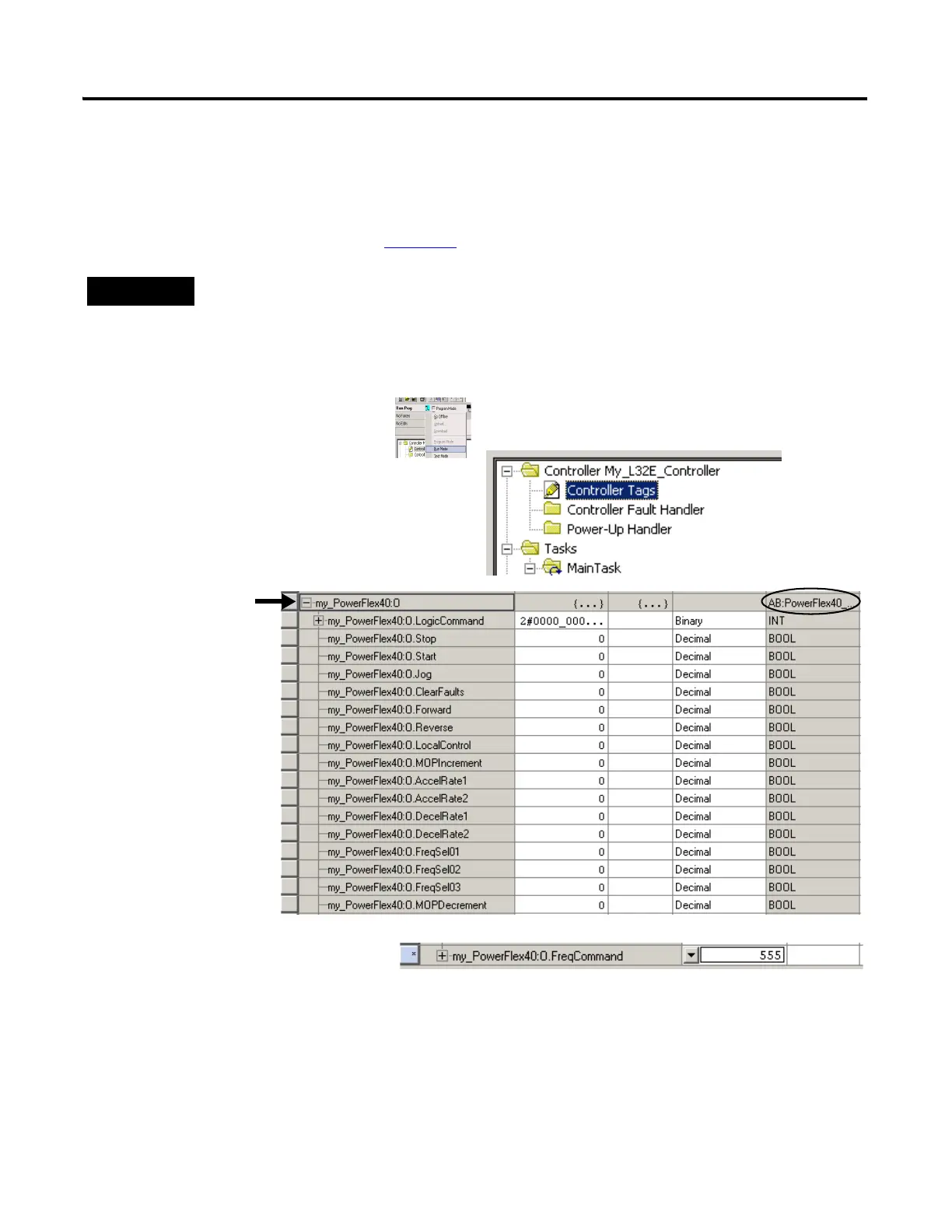

2. Double-click Controller Tags.
3. Expand the
PowerFlex 40
output tag.
4. At the O.FreqCommand Tag,
enter 555.
The value 555 equals 55.5 Hz.
1. Move the controller keyswitch
to RUN.
TIP
To change a tag in RSLogix:
1. Select the tag value.
2. Enter or select the desired value.
3. Press <Enter>.
