Allen-Bradley CompactLogix Series User Manual

124 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 11 Add Distributed I/O Modules to the Project
Create a DeviceNet Scanlist
Go Online. DeviceNet only
(for EtherNet/IP and ControlNet, skip to page 127
)

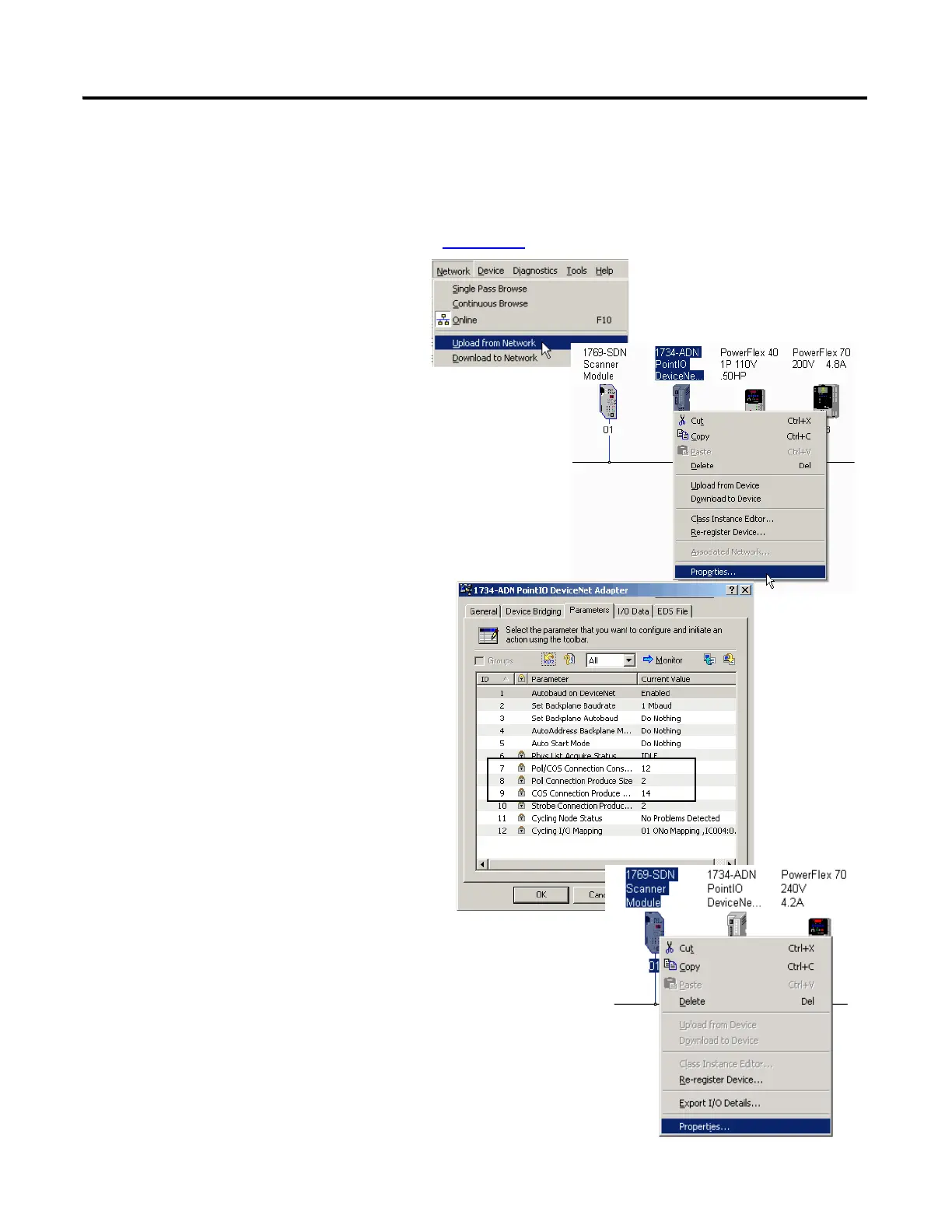

1. Select Network > Upload from
Network.
2. Click Yes.
3. Right-click the 1734-ADN adapter
and select Properties.
4. Click the Parameters tab and write
down the parameters shown.
5. Click OK.
6. Right-click the 1769-SDN module
and select Properties.
