Publication IASIMP-QS001C-EN-P - October 2009 103
Create a Project Using RSLogix 5000 Programming Software Chapter 10
Configure the Controller
1769-L32E or 1769-L35E controllers

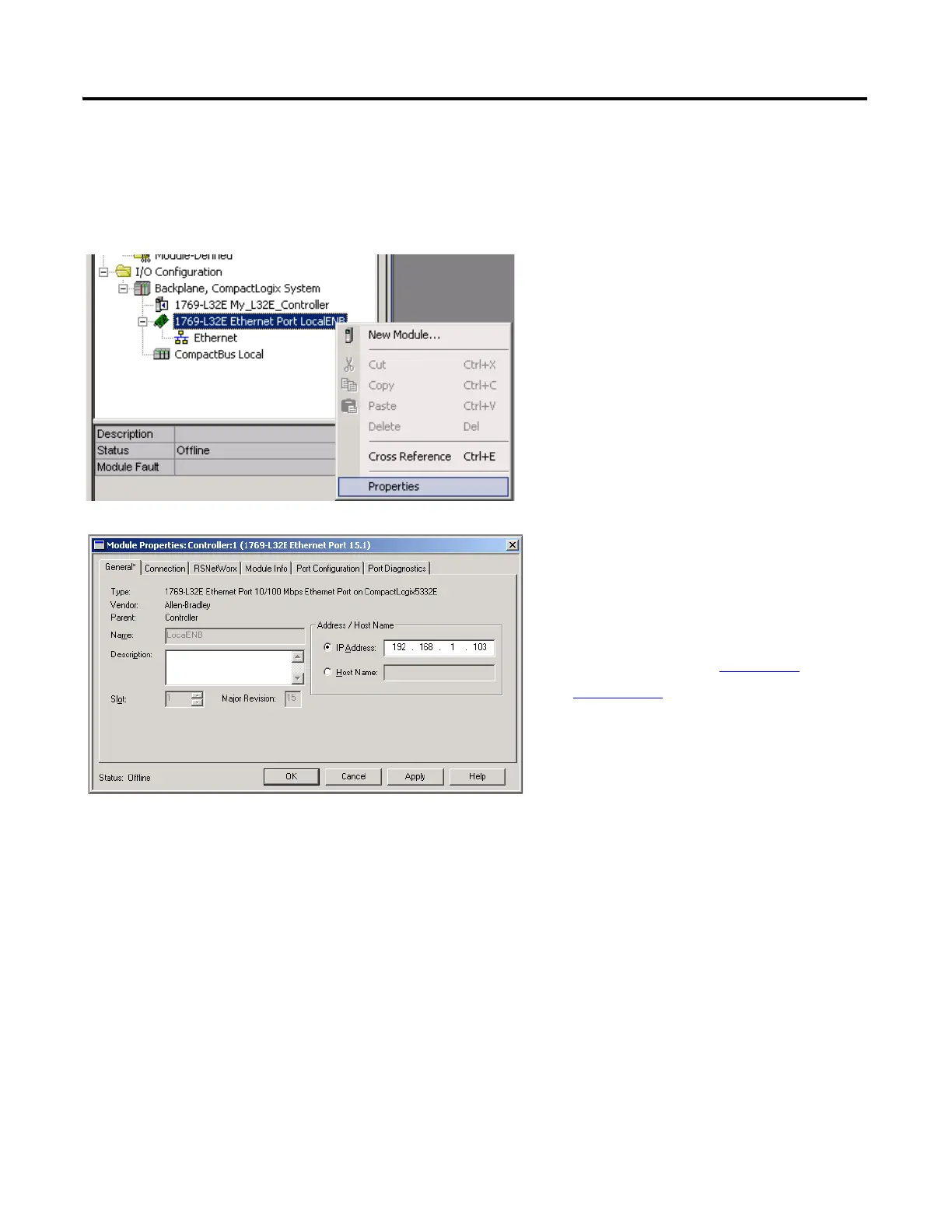

1. Expand the I/O Configuration
tree.
2. Right-click the Ethernet Port
and select Properties.
3. Enter the controller’s IP address
(recorded on the Network
Worksheet) and click OK.
