Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 105
Create a Project Using RSLogix 5000 Programming Software Chapter 10

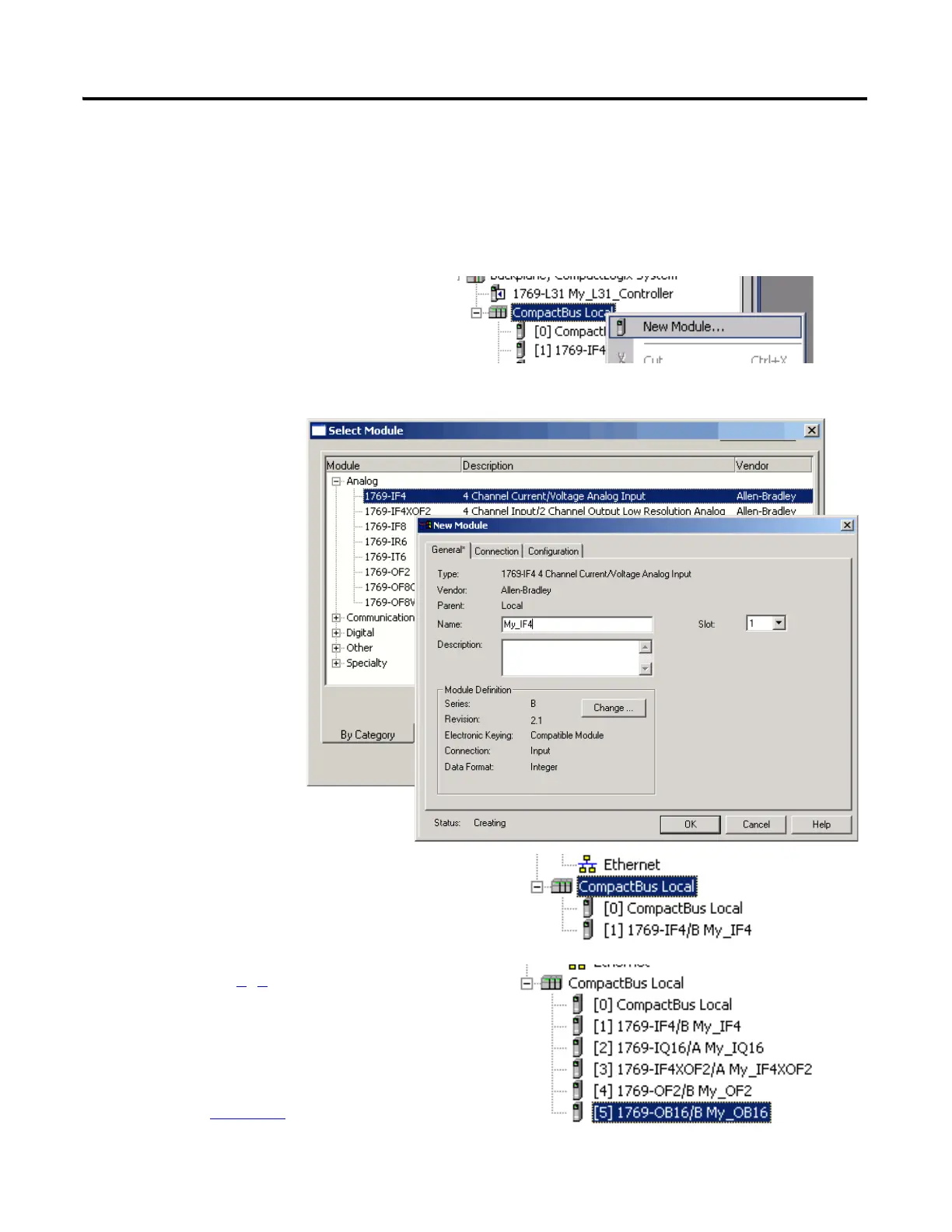

Add Local I/O Modules
All controllers
1. Right-click CompactBus Local and
select New Module.
2. Select the leftmost
I/O module in the
1769 CompactLogix
chassis and assign a
slot number, then
click OK.
3. In the Name box,
type a name and
click OK.
The module is added to the I/O
Configuration.
4. Repeat steps 1–3 until all of your local I/O
modules are added in order from left to
right.
Do not add the 1769-SDN module. It is
added on page 111
.
