Publication IASIMP-QS001C-EN-P - October 2009 169
Create a PowerFlex 40 Application Chapter 13
Add the Drive to Your RSLogix 5000 Project
EtherNet/IP and ControlNet networks only
(for a DeviceNet network, skip to
page 171)

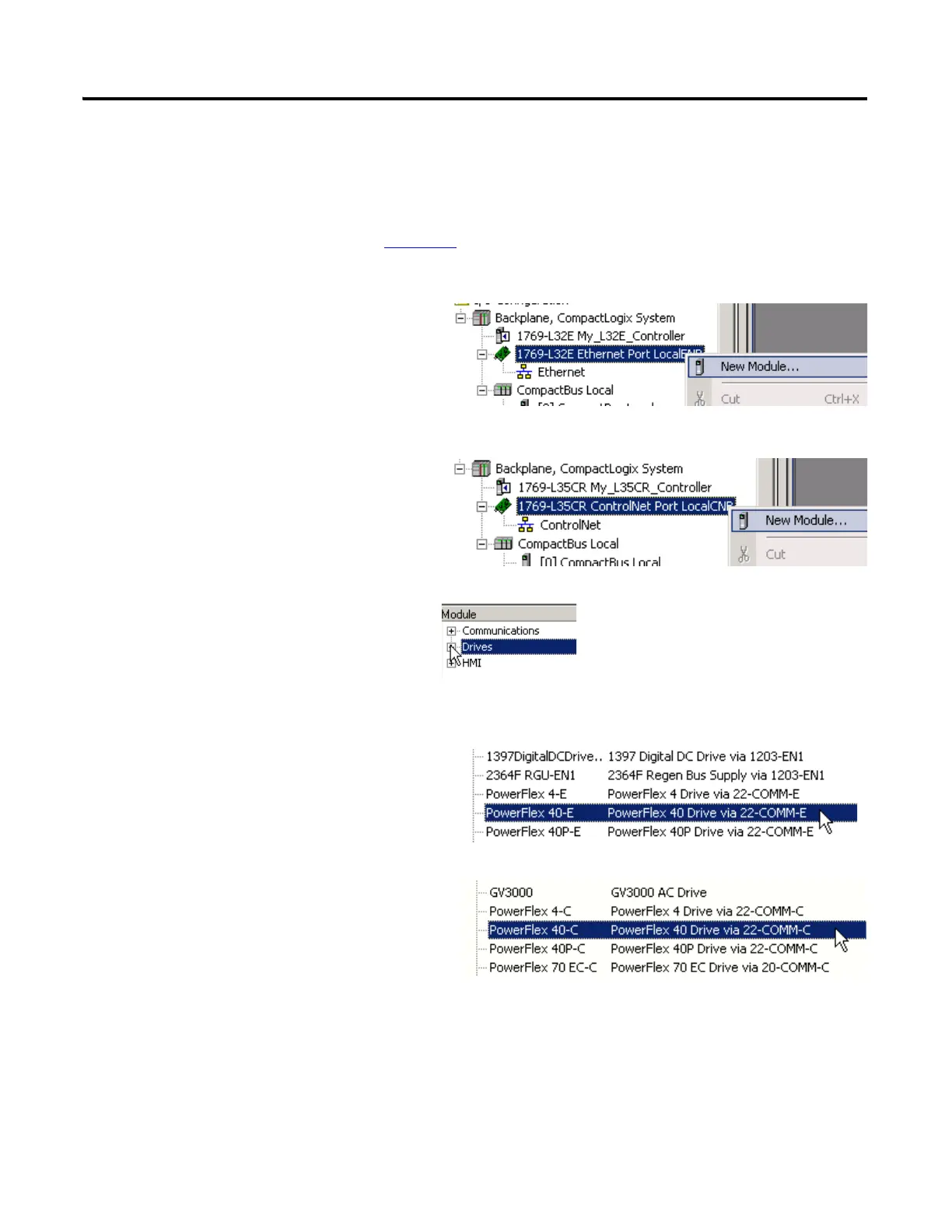

1. Right-click your network
port and select New
Module.
2. Expand Drives.
3. Select the PowerFlex 40-x.
EtherNet/IP
ControlNet
EtherNet/IP
ControlNet
