Allen-Bradley CompactLogix Series User Manual

170 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 13 Create a PowerFlex 40 Application

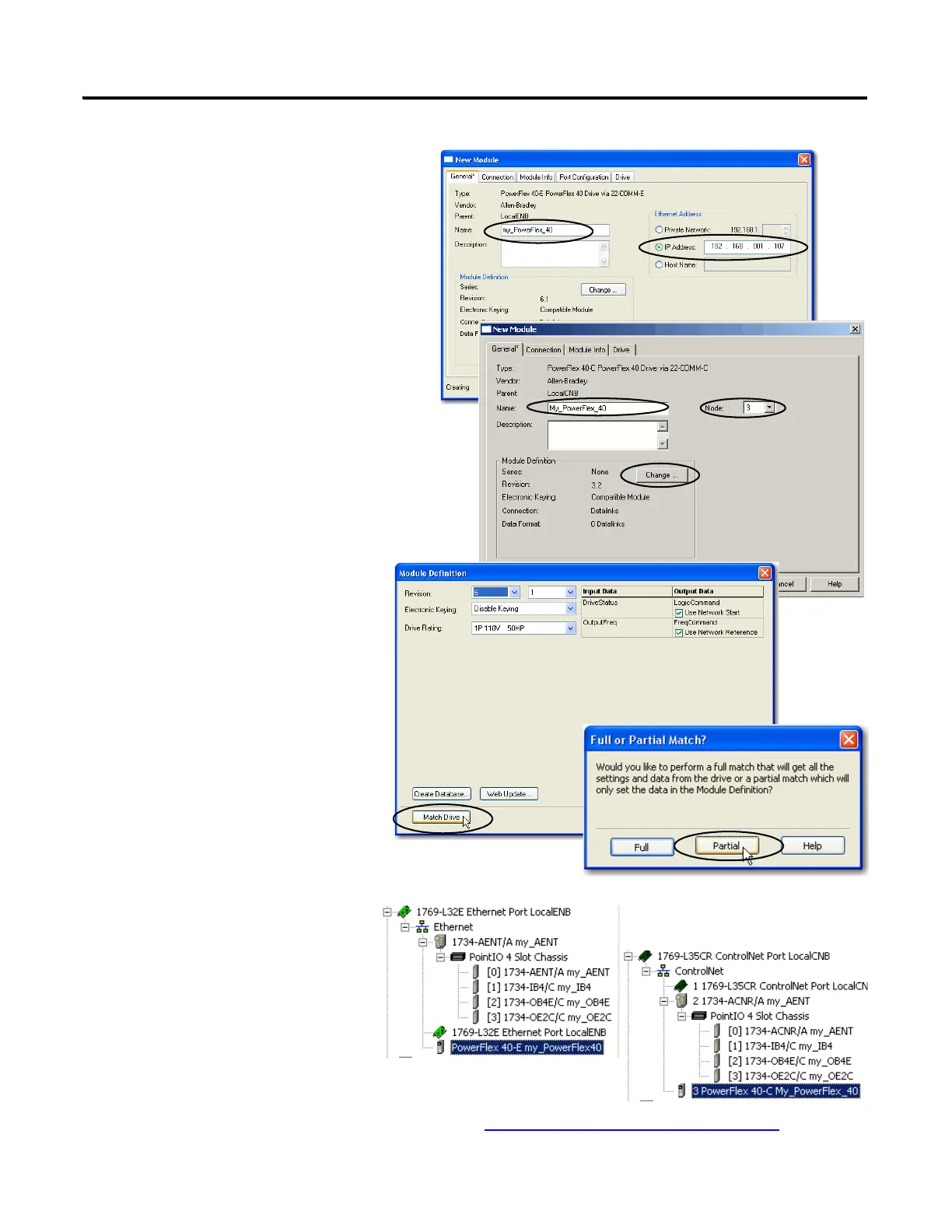

7. On the Module Definition
dialog box, click Match
Drive.
8. On the Full or Partial Match
dialog box, click Partial.
9. Click OK.
10. Click OK again.
The PowerFlex 40 is added to
the controller organizer.
4. In the Name field, type a
name for the drive.
5. Enter an IP Address
(Ethernet network) or
Node number
(ControlNet network) for
the PowerFlex 40 drive.
6. Click Change.
ControlNet
EtherNet/IP
ControlNet
EtherNet/IP
For EtherNet/IP and ControlNet, skip to Download the Project on page 176.
