Allen-Bradley CompactLogix Series User Manual

52 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 3 Prepare the Distributed POINT I/O Hardware
Mount and Wire the POINT I/O Power Supply
1794-PS3 or 1794-PS13 power supplies

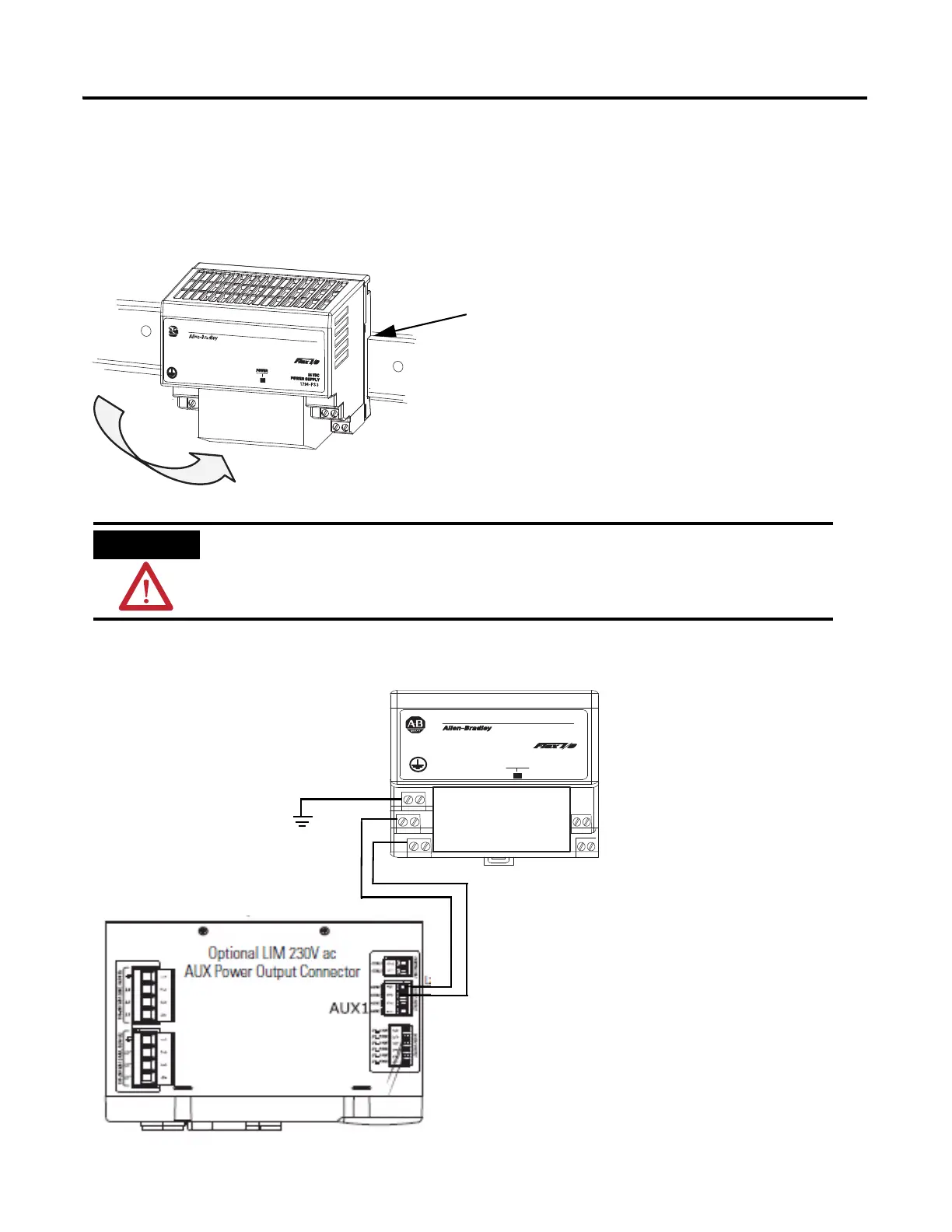

1. Hook the upper-lip of the DIN rail latch onto the
DIN rail.
2. Press the module onto the DIN rail.
3. Connect the
120/230V AC
power, 120/230V
AC common and
AC Ground wires.
WARNING
Verify that all incoming power is turned off before wiring power.
Upper-lip of DIN rail latch.
r
ewo
P
CD
V42
YLPPUS REWO
P
3S
P-4971
V42
MO
C
GR
L2/N
L1
L2
L1
Top View
