88 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 8 Configure the ControlNet Driver
Configure the ControlNet Driver in RSLinx
RSLinx software

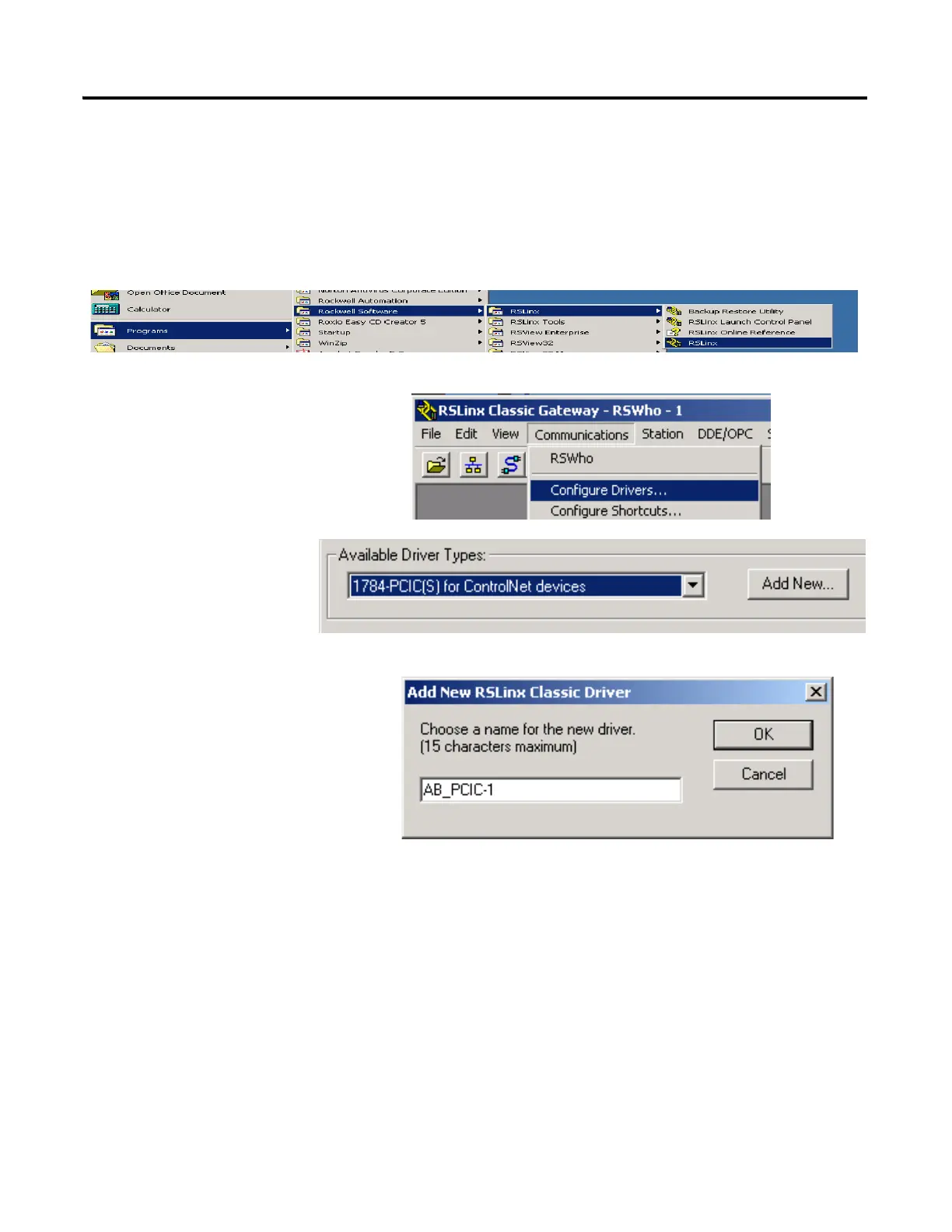

1. Launch RSLinx software.
2. From the
Communications menu,
choose Configure Drivers.
3. From the Available Driver
Types pull-down
menu, choose
1784-PCIC(S) for
ControlNet devices.
4. Click Add New.
5. Click OK to keep the default
name.
