Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 19
Prepare the CompactLogix Hardware Chapter 1

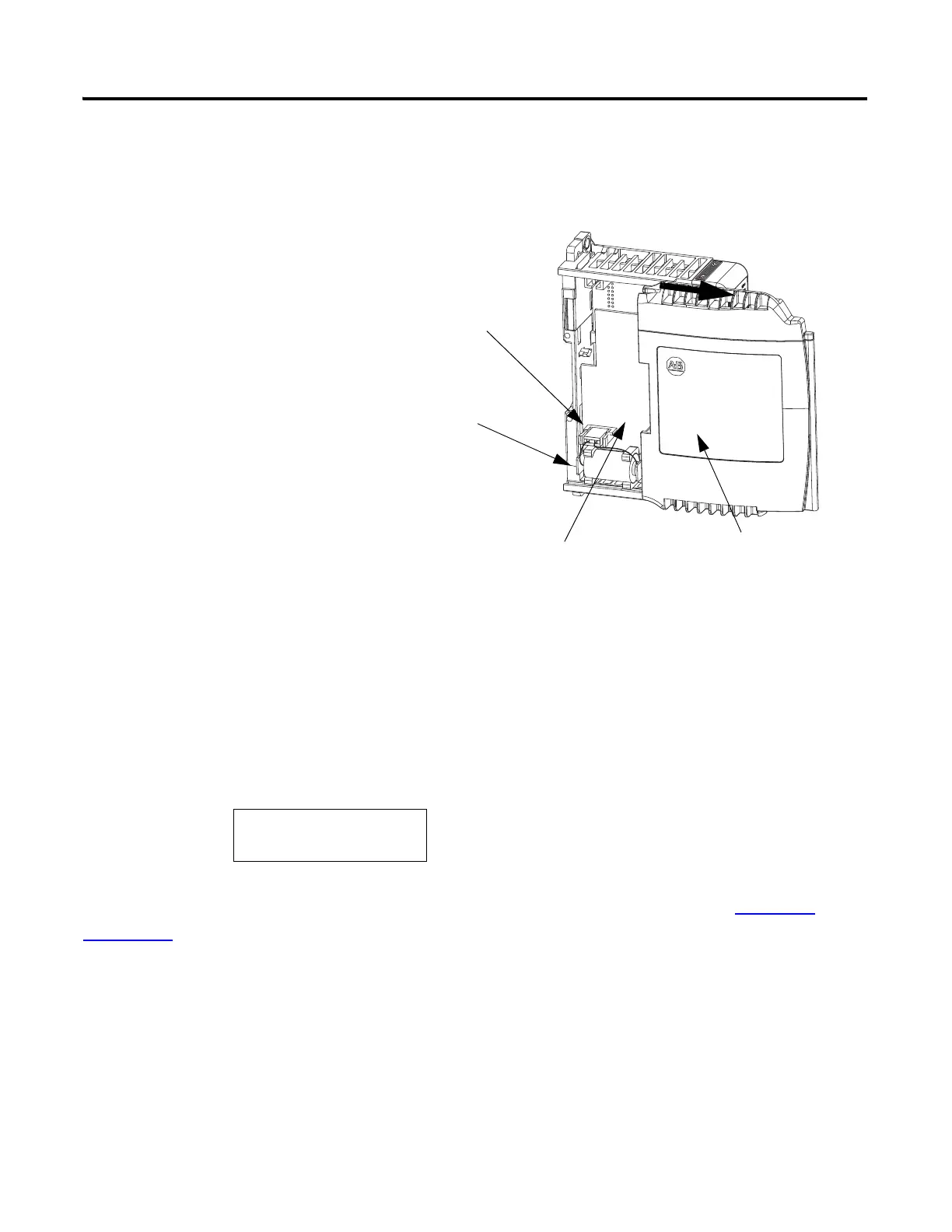

Connect the Battery to the Controller
1769-BA Battery
Record the Ethernet Address (MAC)
1769-L32E or 1769-L35E controllers
The Ethernet address (MAC) is found on a label near the battery. This is an example address.
Record the Ethernet address (MAC) for the CompactLogix controller on the Network
Worksheet at the back of this quick start. This address is used to set the IP address later.
1. Insert the battery and battery
connector.
2. Record the battery installation
date in the box provided on
the label.
Battery
Battery Connector
Ethernet Address
Box for Battery
Installation Date
00:00:BC:21:D7:BE
Ethernet Address
