Allen-Bradley CompactLogix Series User Manual

176 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 13 Create a PowerFlex 40 Application
Download the Project
EtherNet/IP, ControlNet, and DeviceNet
TIP
If you receive a fault message on your PowerFlex 40, press on the keypad
to clear the fault.

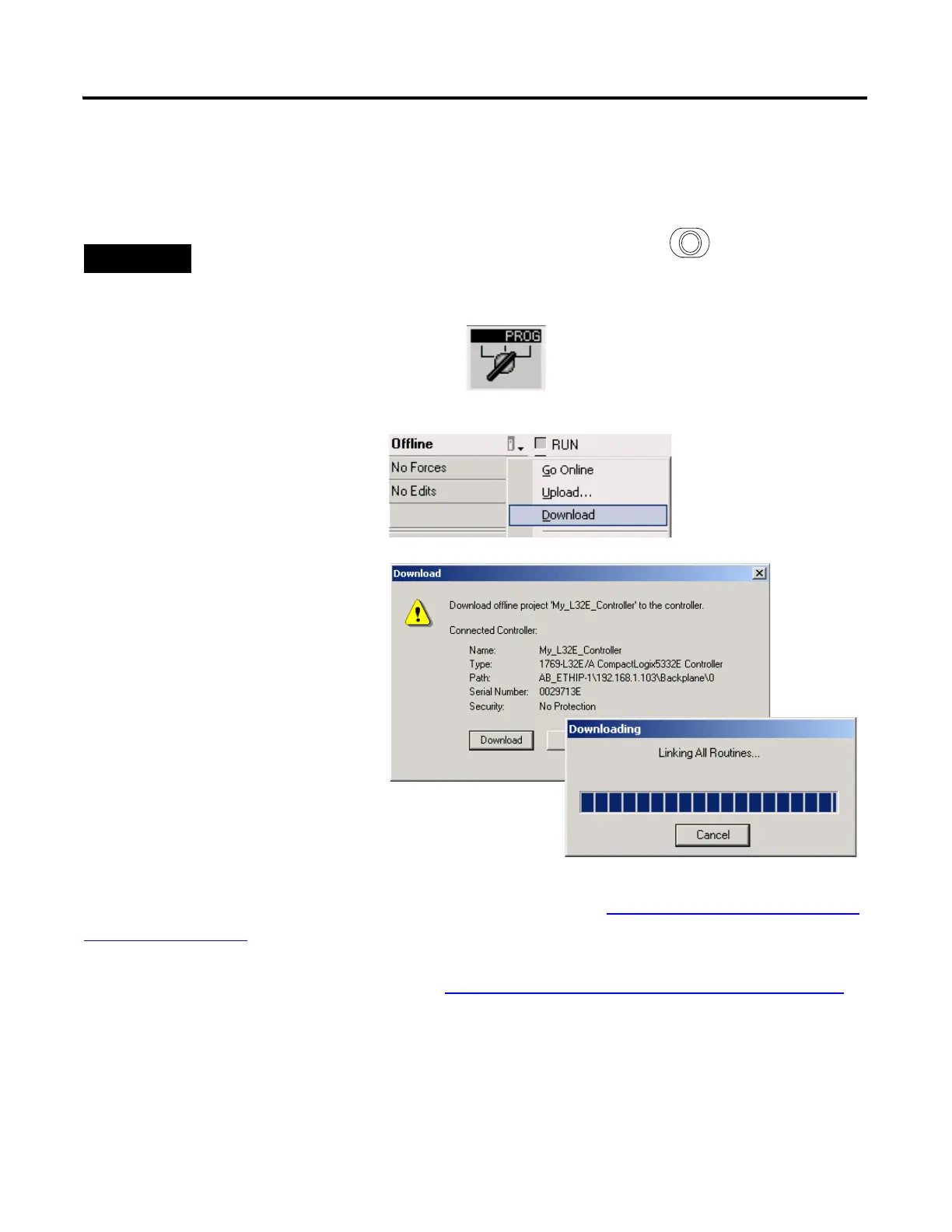

2. Click the Controller
Status icon and select
Download.
3. Click Download.
The project downloads to the
controller.
If you are using EtherNet/IP or DeviceNet networks, skip to Edit PowerFlex 40 Parameter
Values on page 181.
If you are using ControlNet continue with Schedule the ControlNet Network on page 177
.
1. If you have not already done so, move
the keyswitch on your controller to
PROG.
