Publication IASIMP-QS001C-EN-P - October 2009 49
Prepare the Distributed POINT I/O Hardware Chapter 3

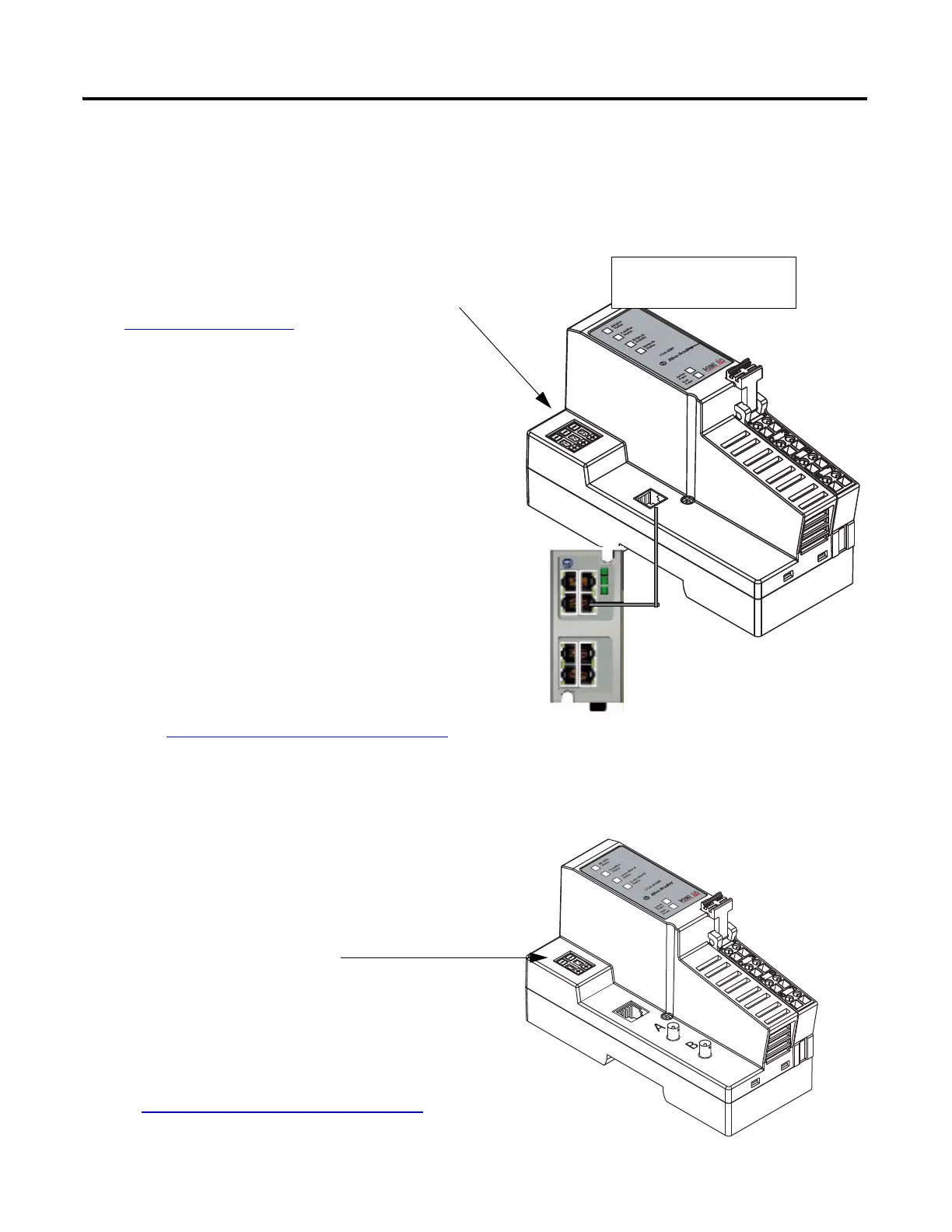

Mount and Connect the Network Adapter
EtherNet/IP 1734-AENT adapter
ControlNet 1734-ACNR adapter
1. Locate the Ethernet address (MAC), found
next to the label. Record the Ethernet address
(MAC) for the POINT I/O adapter on the
Network Worksheet
.
This address is used to set the IP address later
in the quick start.
2. Set the address to a value greater than or
equal to 256.
This example uses 999.
3. Remove the safety end cap.
4. Press the adapter onto the DIN rail.
5. Insert an Ethernet cable.
Go to Mount the POINT I/O Modules
.
00:00:BC:21:44:8A
Ethernet Address
Example Address
1. Remove the safety end cap.
2. Press the adapter onto the DIN rail.
3. Set the node address.
This example uses node 02.
4. Connect a ControlNet tap to the A port.
Go to Mount the POINT I/O Modules
.
To Next Page
