Publication IASIMP-QS001C-EN-P - October 2009 137
Add Distributed I/O Modules to the Project Chapter 11
Schedule the ControlNet Network
ControlNet only
(For EtherNet or DeviceNet, skip to page 141
.)

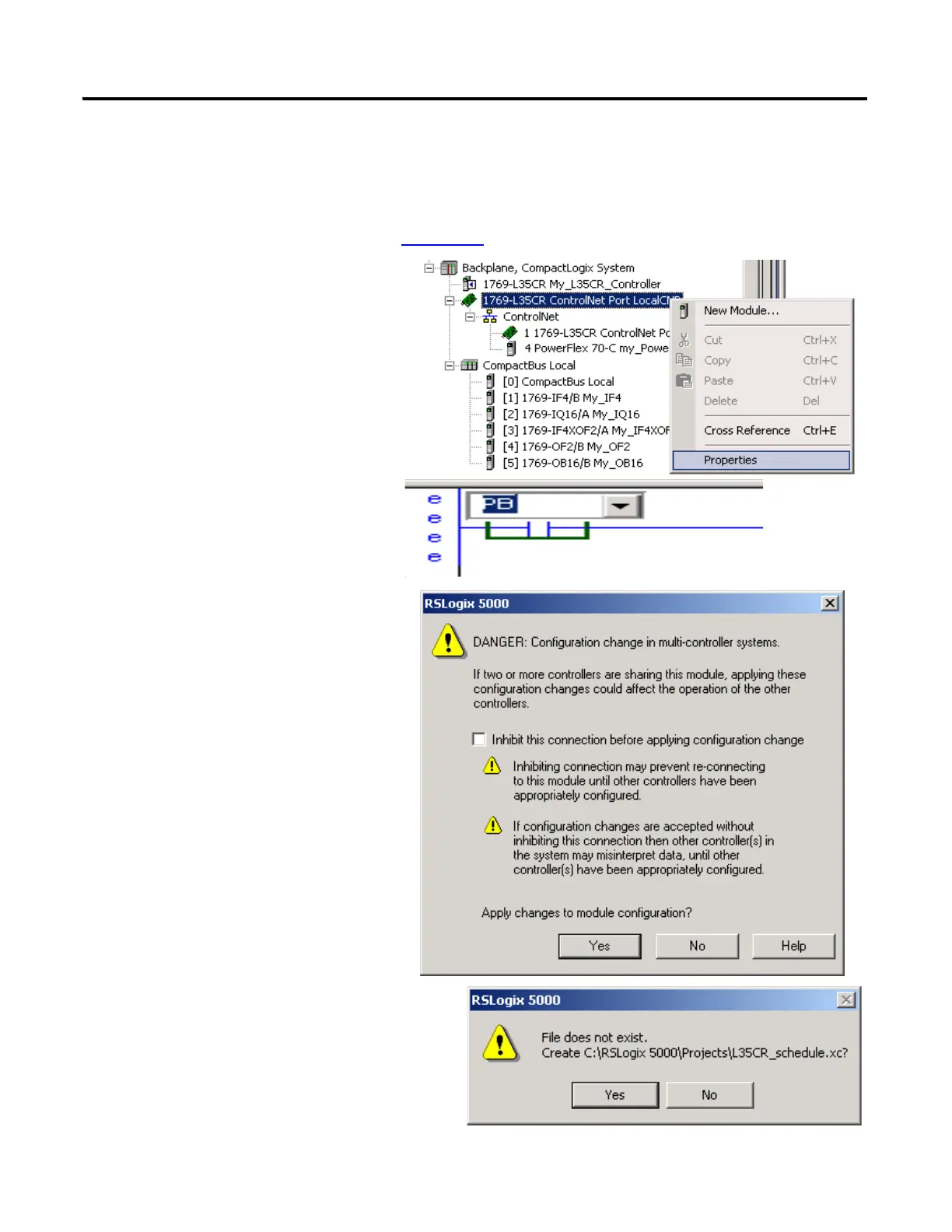

1. Right-click the ControlNet Port
and select Properties.
2. On the RSNetWorx tab, enter a
new ControlNet file name and
click Apply.
3. Click Yes.
4. Click Yes.
