Publication IASIMP-QS001C-EN-P - October 2009 25
Prepare the CompactLogix Hardware Chapter 1
Wire Power

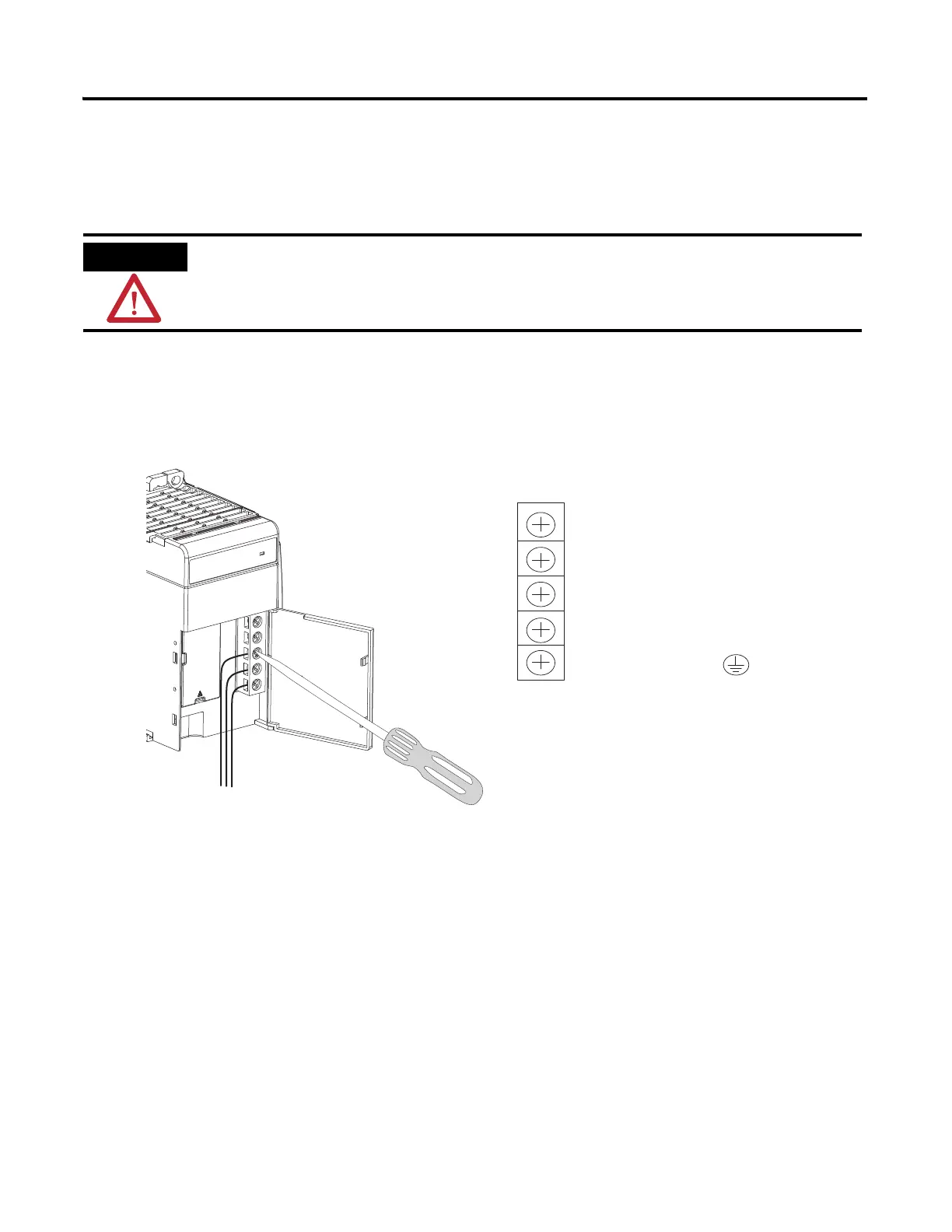

1769-PA2 power supply
PWR OUT +24V DC
PWR OUT COM
120/240V AC
V AC COM
CHASSIS GROUND
1. Insert the 120/240V AC, V AC COM, and Chassis Ground wires and tighten the
terminal screws.
2. Turn on incoming power.
WARNING
Verify that all incoming power is turned off before wiring power.
Terminal Wiring Diagram
