Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 31
Prepare the Computer Chapter 2

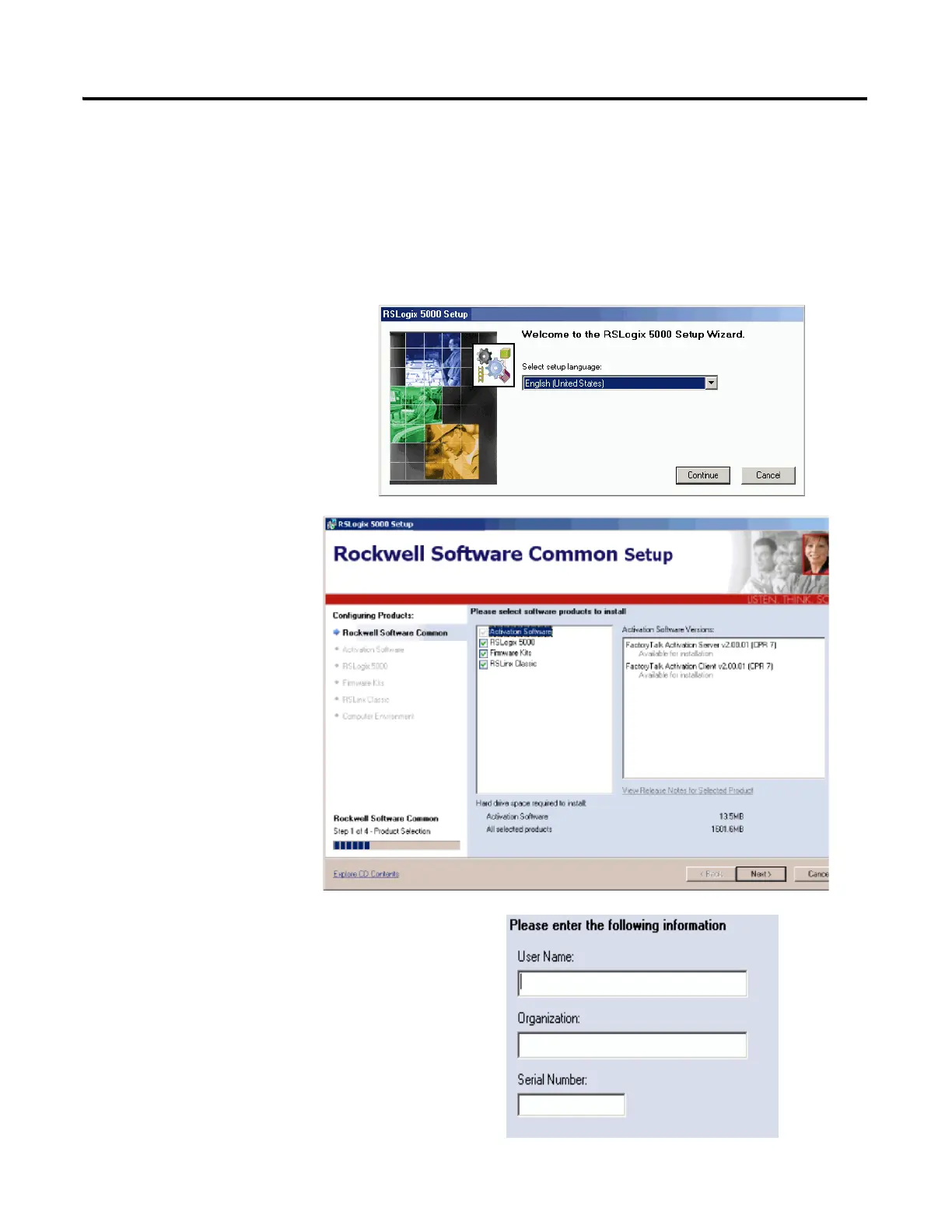

Install RSLogix Programming Software
Required for all controllers
3. Accept the default
software products for
installation and click
Next.
Throughout the installation, click Next to use default RSLogix 5000 installation settings
except when indicated in the steps below.
1. Begin the RSLogix 5000
software installation.
2. Choose your language and
click Continue.
4. Enter your user name, organization, and
software serial number, then click Next.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
