Allen-Bradley CompactLogix Series User Manual

30 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 2 Prepare the Computer

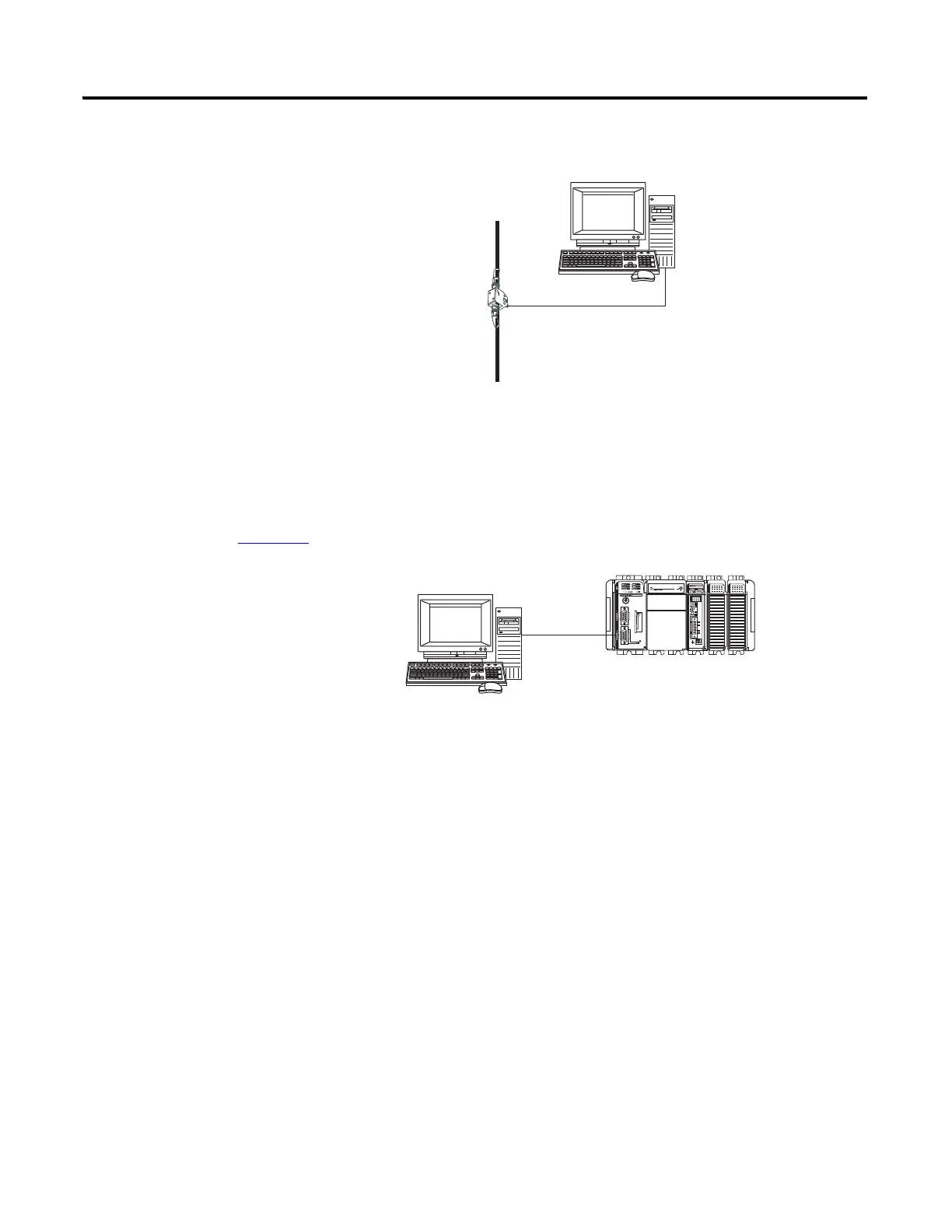

ControlNet connection - 1769-L32C and 1769-L35CR controllers only
Serial connection - Required for all controllers
Connect a ControlNet tap to port A of the
ControlNet communication card in the
computer.
ControlNet Tap on
ControlNet Network
Computer with 1784-PCIC or
1784-PCICS communication
card.
You connected a 1756-CP3 cable to a COM port on the computer and to the CH0 port
on the controller in Chapter 1.
1756-CP3 serial cable to CH0 on 1769-L31.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
