98 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 9 Configure the DeviceNet Network
Additional Resources
Resource Description
DeviceNet Modules in Logix5000 Control
Systems, publication DNET-UM004
Provides details regarding the installation, configuration, and operation of DeviceNet
modules.
Uploading an EDS File From a Drive,
Knowledgebase ID 20539,
http://www.rockwellautomation.com/knowled
gebase/
Provides an explanation about uploading EDS files from drives.

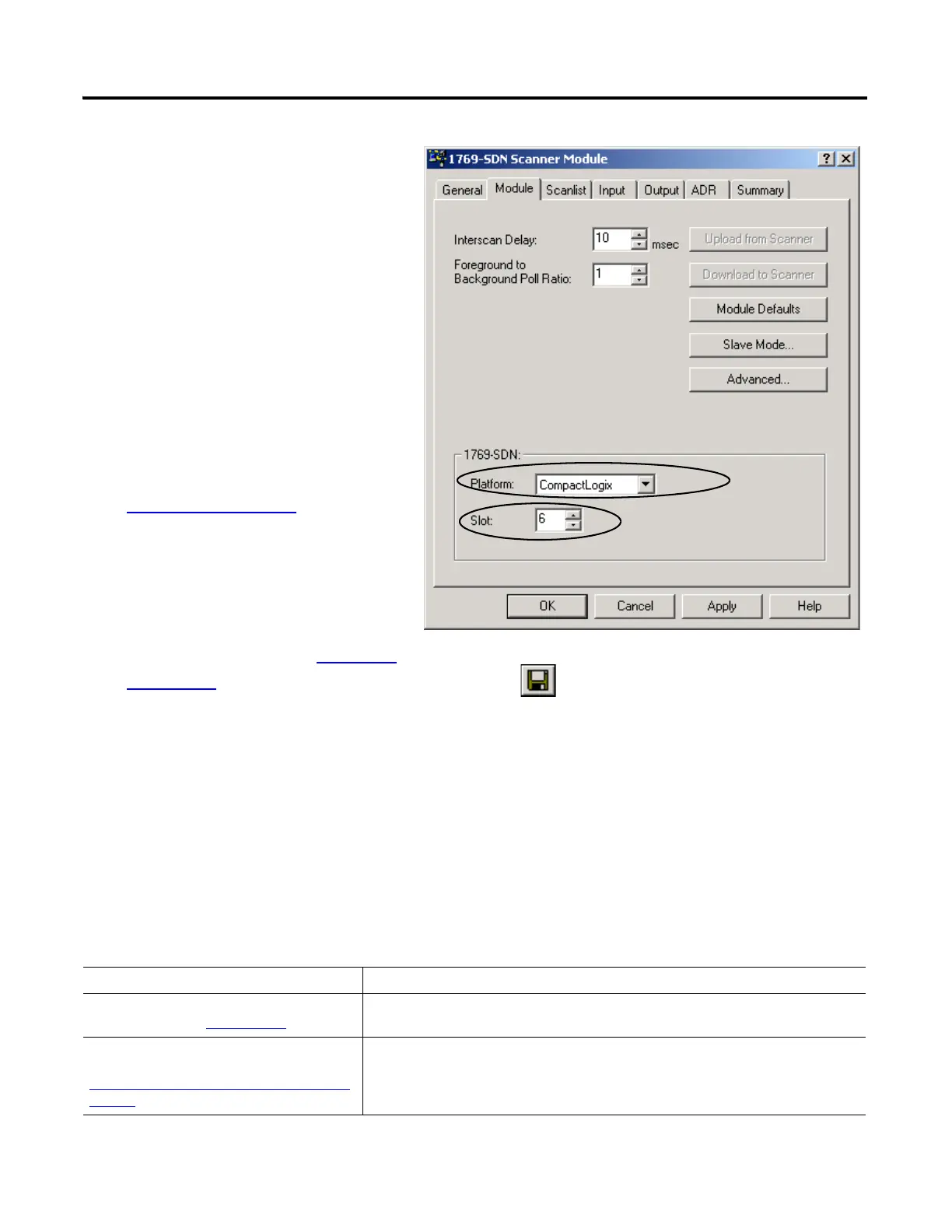

12. From the Platform pull-down
menu, select CompactLogix.
14. Click OK.
15. Save the file and record the file
name and path on the Network
Worksheet.
This quick start uses the example file
name MainDNet.dnt.
16. Close RSNetWorx for DeviceNet
software.
13. Enter the slot number of the
1769-SDN you recorded on the
Network Worksheet
.
To Next Page
