Chapter 14 Create a PanelView Plus Application
Transfer to PanelView Plus Firmware
All controllers

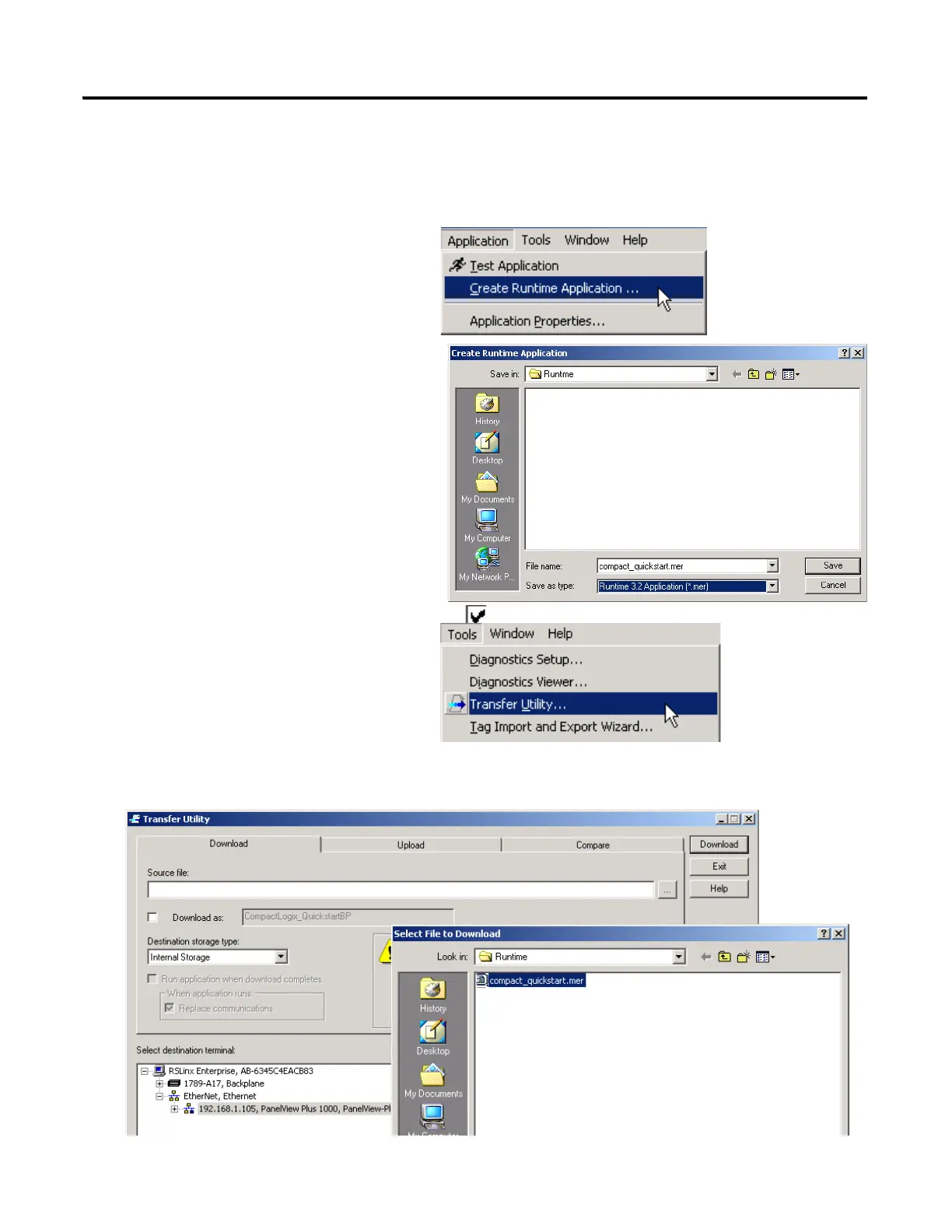

1. Under Application, select
Create Runtime Application.
2. In Save as type, select the Runtime
version that matches your
PanelView Plus firmware.
To check the PanelView Plus
firmware revision, on the terminal
select Terminal Setting [F4] >
System Information > About
FactoryTalkView ME Station
3. Click Save to accept the default file
name.
4. From the Tools menu, choose
Transfer Utility.
5. Click the... button, select the .mer file you just created and click Open.
