Publication IASIMP-QS001C-EN-P - October 2009 209
Create a PanelView Plus Application Chapter 14
Assign an Initial Screen
All controllers

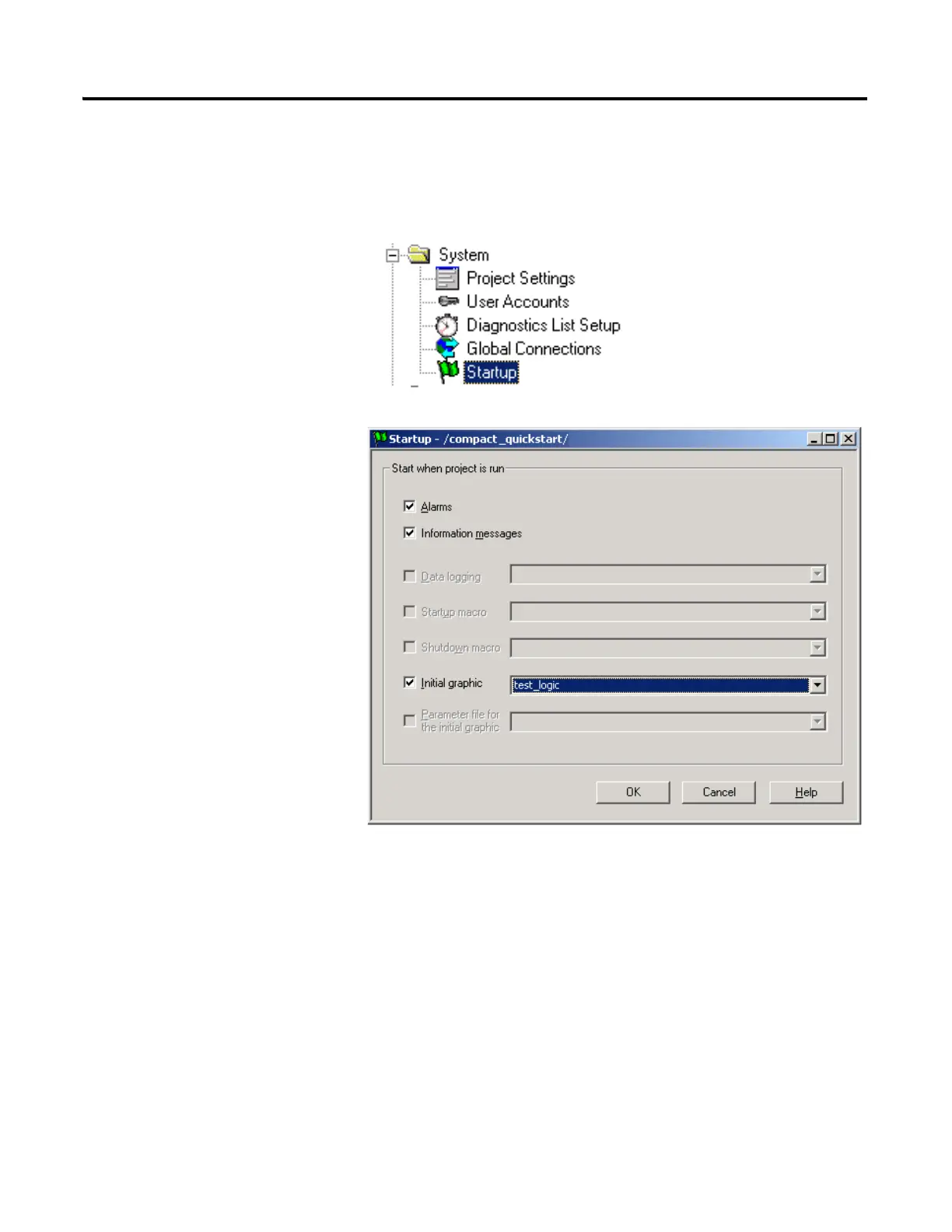

1. Under System, double-click
Startup.
2. Check the Initial graphic
checkbox and select
test_logic.
3. Click OK.
4. Save your changes.
