138 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 11 Add Distributed I/O Modules to the Project

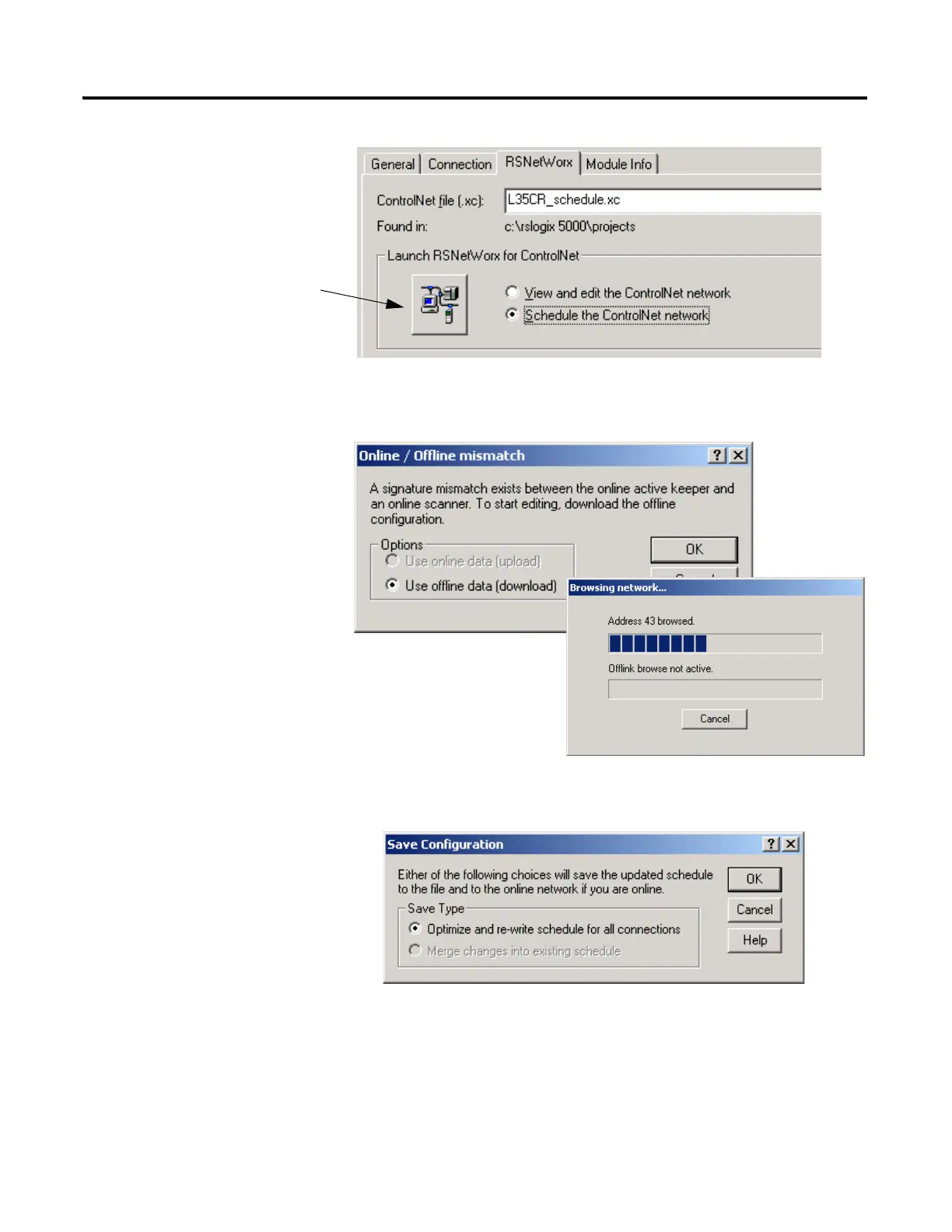

7. Verify that Use offline
data (download) is
selected and click OK.
RSNetWorx browses the
network.
8. If prompted, select
Optimize and click OK.
RSNetWorx for
ControlNet software
browses the network again.
5. Select Schedule the
ControlNet network.
6. Click the RSNetWorx
icon.
RSNetWorx for
ControlNet launches.
