Publication IASIMP-QS001C-EN-P - October 2009 123
Add Distributed I/O Modules to the Project Chapter 11

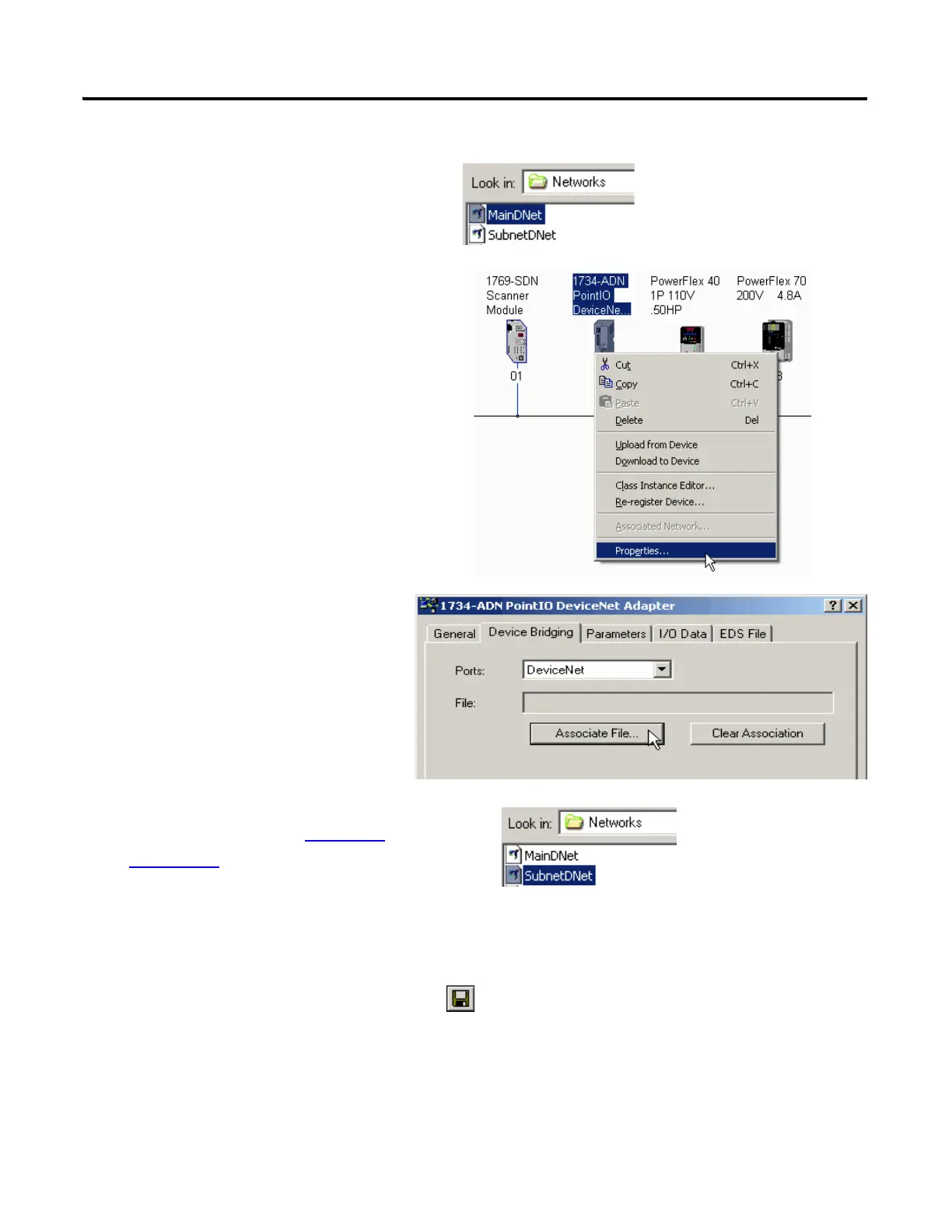

19. Select your main DeviceNet file and
click Open.
20. Right-click the POINT I/O adapter
and select Properties.
21. Click the Device Bridging tab.
22. Click Associate File.
23. Select the subnet configuration file
you recorded on the Network
Worksheet and click Open.
24. Click OK.
25. Save your main DeviceNet
configuration file.
