Chapter 11 Add Distributed I/O Modules to the Project

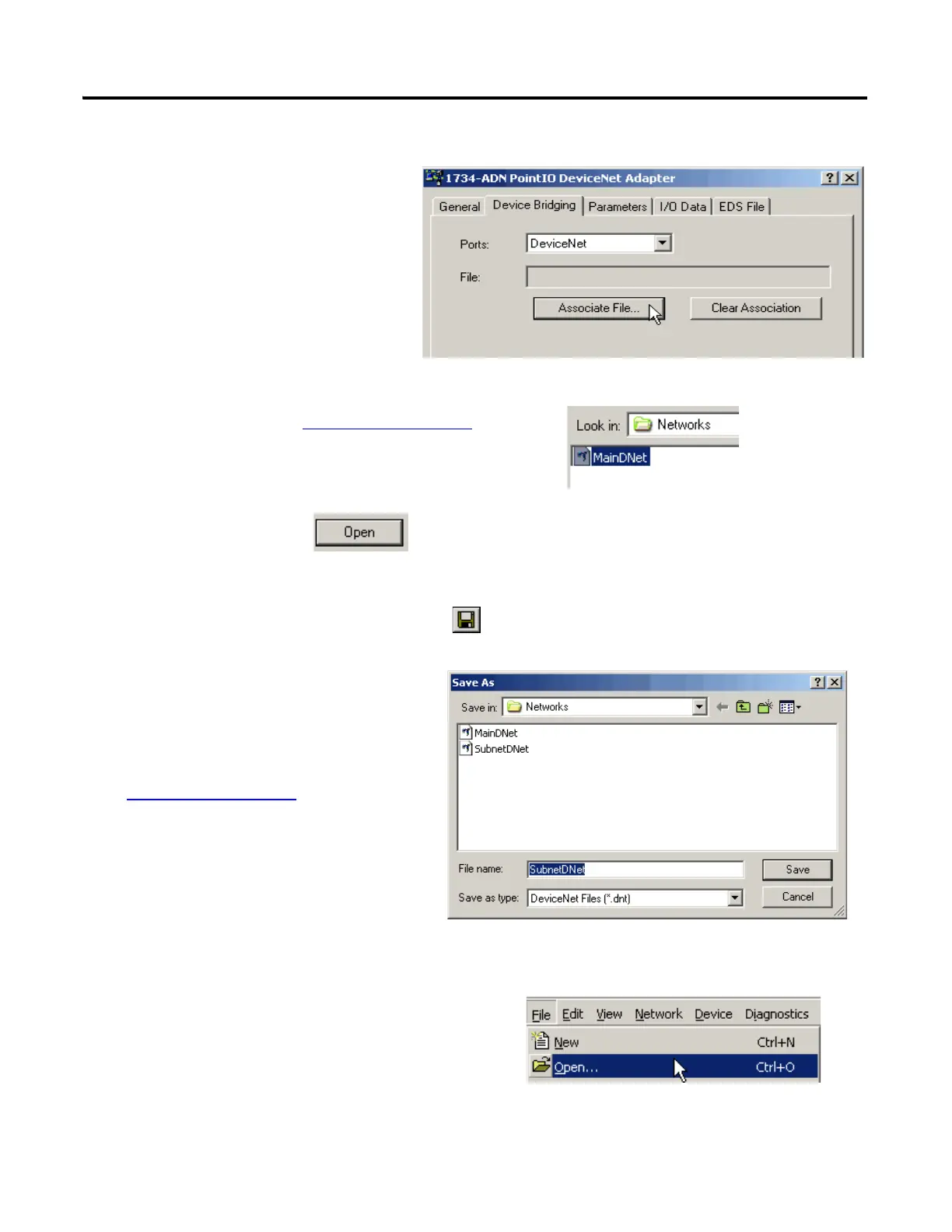

11. Click the Device Bridging tab.
12. Click Associate File.
13. Select the main DeviceNet configuration file
you recorded on the Network Worksheet
.
14. Click Open.
15. Click OK.
16. Save the DeviceNet subnet configuration
file.
Name the file so it can be easily
identified as the subnet. This quick
start uses the name SubnetDNet.dnt.
17. Record the file name on the
Network Worksheet
located inside
the back cover of this quick start.
18. In RSNetWorx software, from the
File menu, choose Open.
