Publication IASIMP-QS001C-EN-P - October 2009 121
Add Distributed I/O Modules to the Project Chapter 11

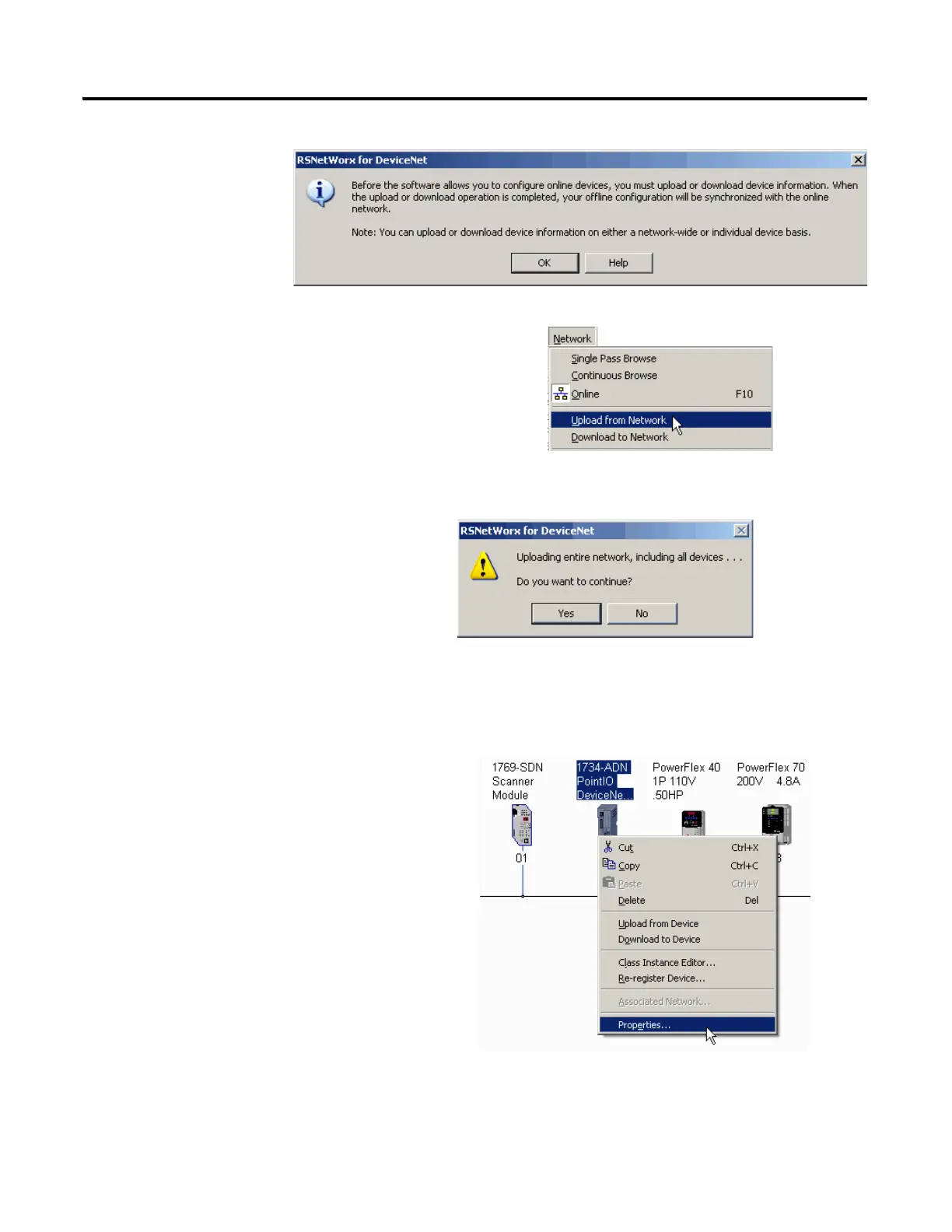

7. Click OK.
The modules on
the subnet display.
8. From the
Network menu, choose Upload from
Network.
9. Click Yes.
10. Right-click the scanner and select
Properties.
