Add Distributed I/O Modules to the Project Chapter 11

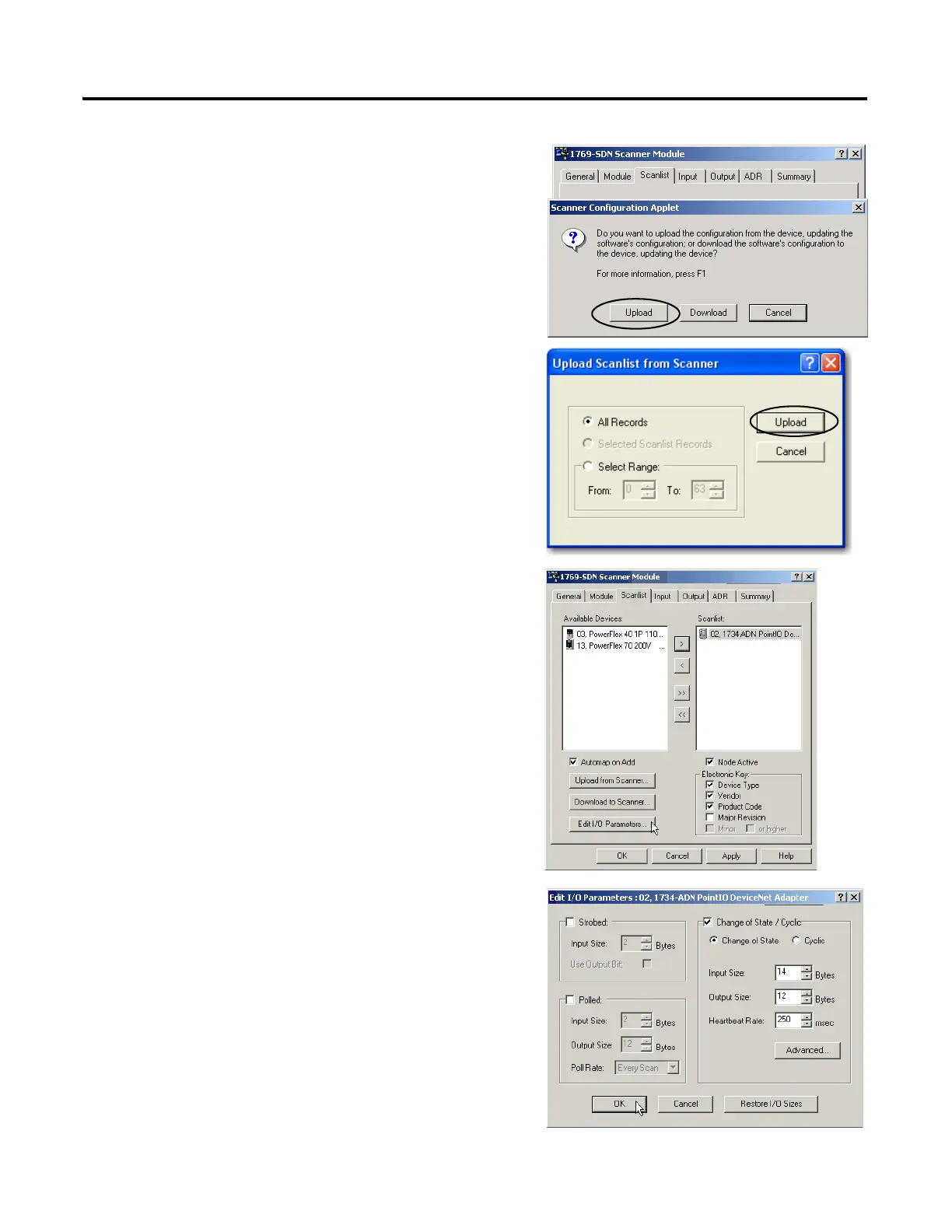

7. Click the Scanlist tab.
8. Click Upload.
The configuration is uploaded from the device.
9. Click the All Records radio button.
10. Click Upload.
11. Select the 1734-ADN adapter and move it to the
Scanlist.
12. Click Edit I/O Parameters.
13. Verify that the I/O parameters match step 4; if
not, update them.
14. Click OK.
