Chapter 12 Create a PowerFlex 70 Application

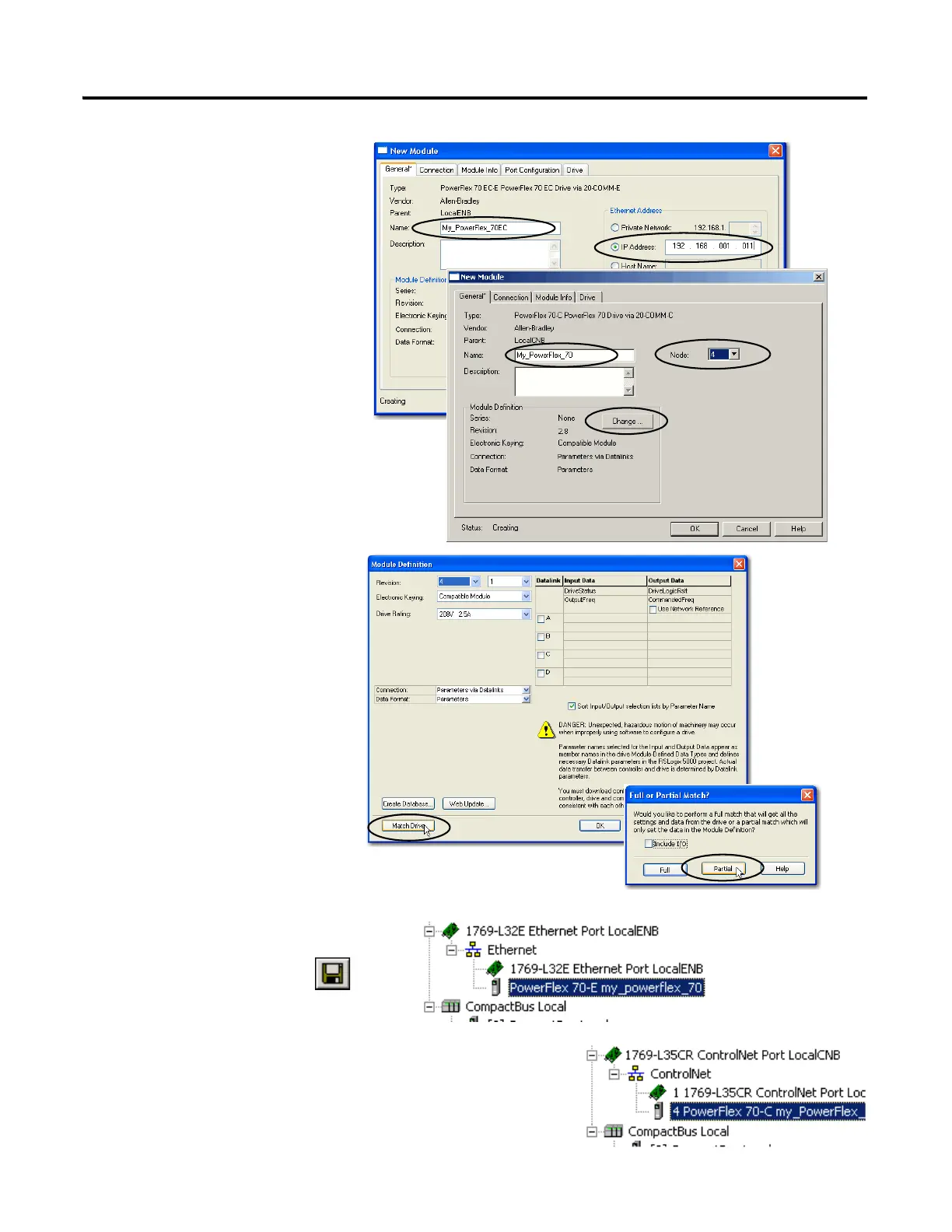

5. Enter a Name and IP
Address
(EtherNet/IP) or
Node number
(ControlNet).
6. Click Change...
7. On the Module
Definition dialog box,
click Match Drive.
8. On the Full or Partial
Match dialog box, make
sure the Include I/O
box is unchecked and
click Partial.
9. Click OK.
The PowerFlex 70 is
added to the controller
organizer under the
network port.
10. Click Save.
11. Download and put the
controller in Remote
Run mode.
EtherNet/IP
ControlNet
ControlNet
EtherNet/IP
EtherNet/IP
