Allen-Bradley CompactLogix Series User Manual

164 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 12 Create a PowerFlex 70 Application

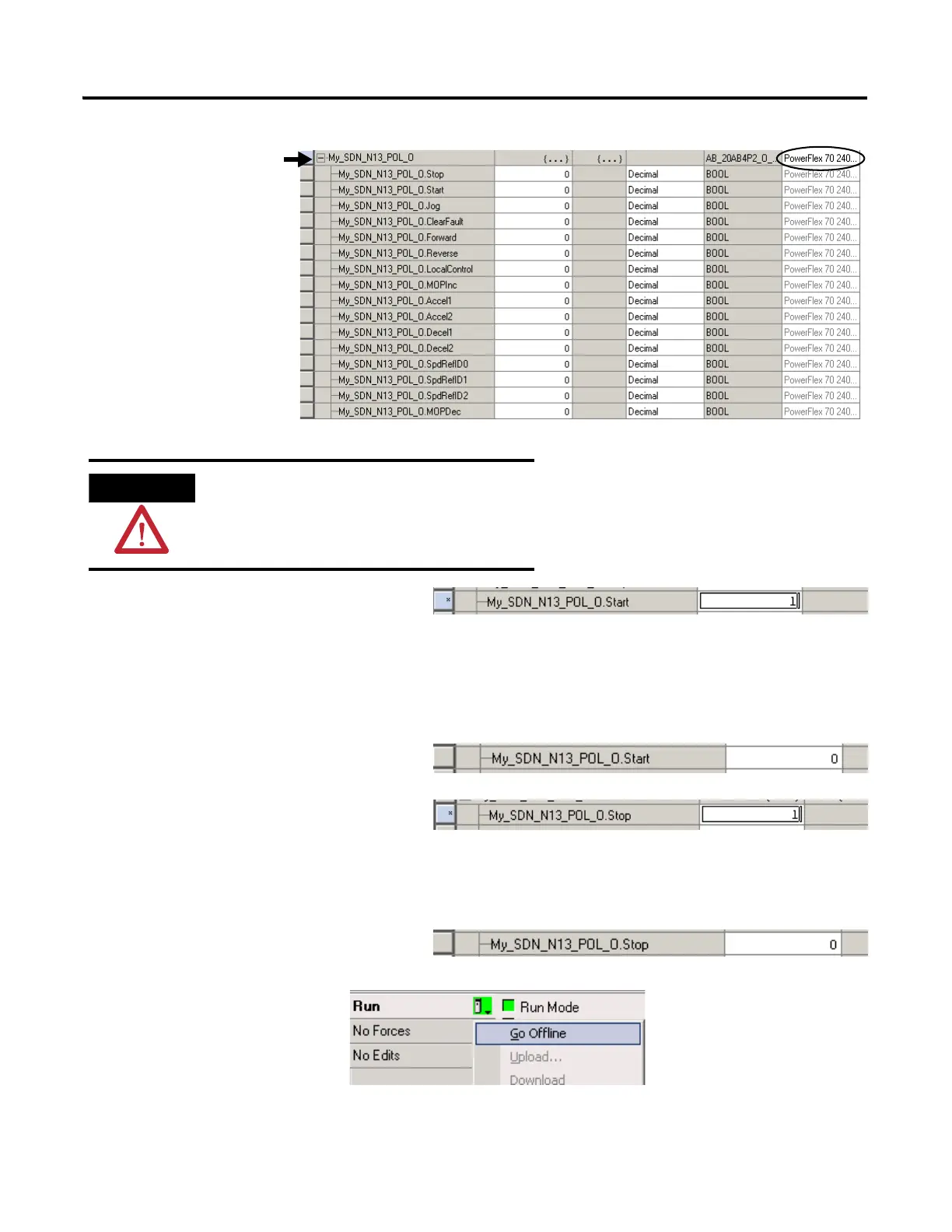

5. Expand the output
tags for the
PowerFlex 70.
WARNING
If there is a motor attached to your drive,
completing the next step will make it turn.
6. At the O.Start tag, enter 1.
The display on the drive registers the speed
increase in Hz until the value entered at the
reference tag is reached.
7. Change the Start tag back to 0.
8. Change the Stop tag to 1.
The display on the drive will show a speed
decrease until the drive reaches 0.00 Hz.
9. Change the Stop tag back to 0.
10. Select Go Offline.
