Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 193
Create a PanelView Plus Application Chapter 14

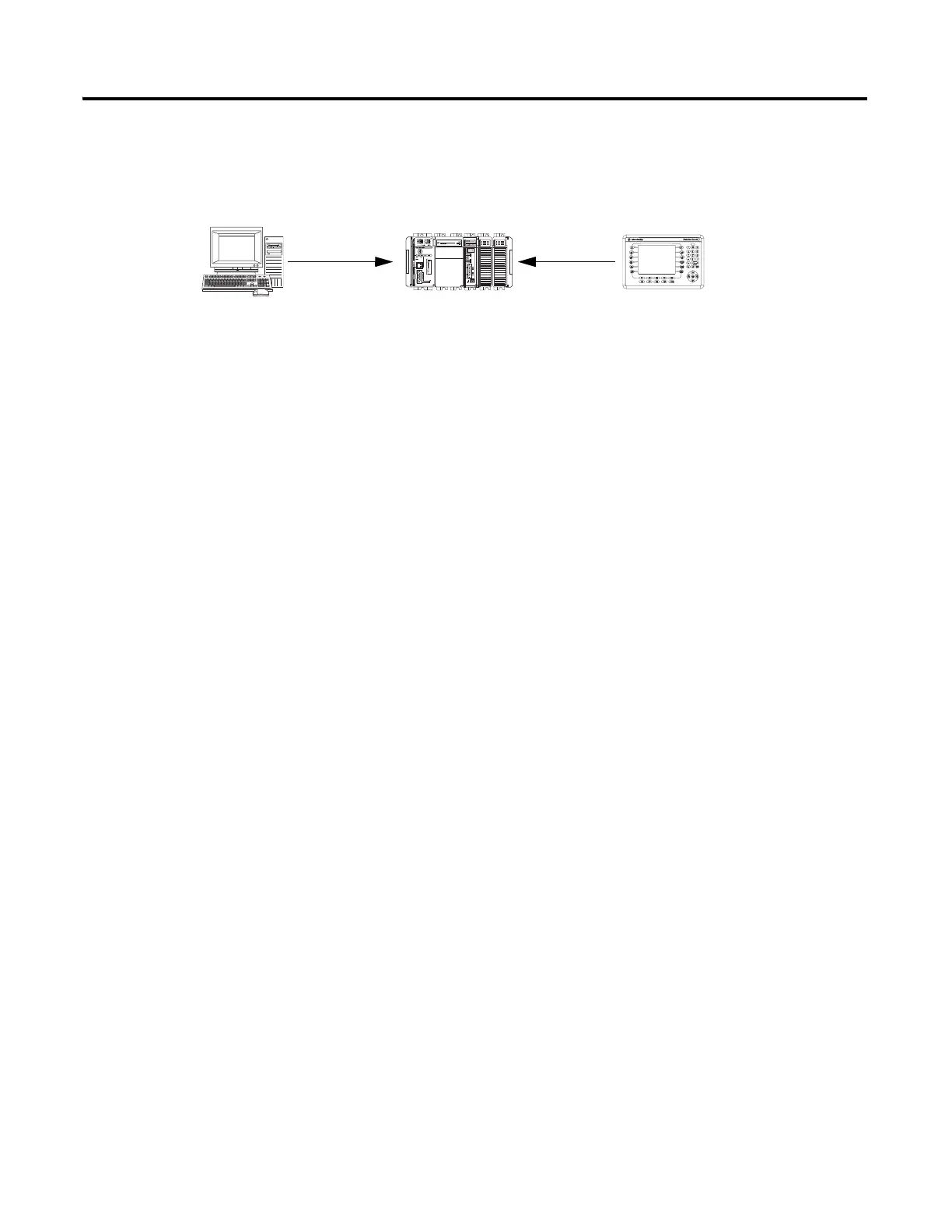

The Local tab defines the path from the computer to the controller.
The Target tab defines the path from the PanelView Plus terminal to the controller.
Computer
Controller
Terminal
TargetLocal
The computer needs to
communicate with the
controller when you are in
Test Run mode. This path is
defined on the Local tab.
The PanelView Plus terminal
also needs to communicate
with the controller, but that is
sometimes a different path.
This path is defined on the
Target tab.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
