Create a PanelView Plus Application Chapter 14

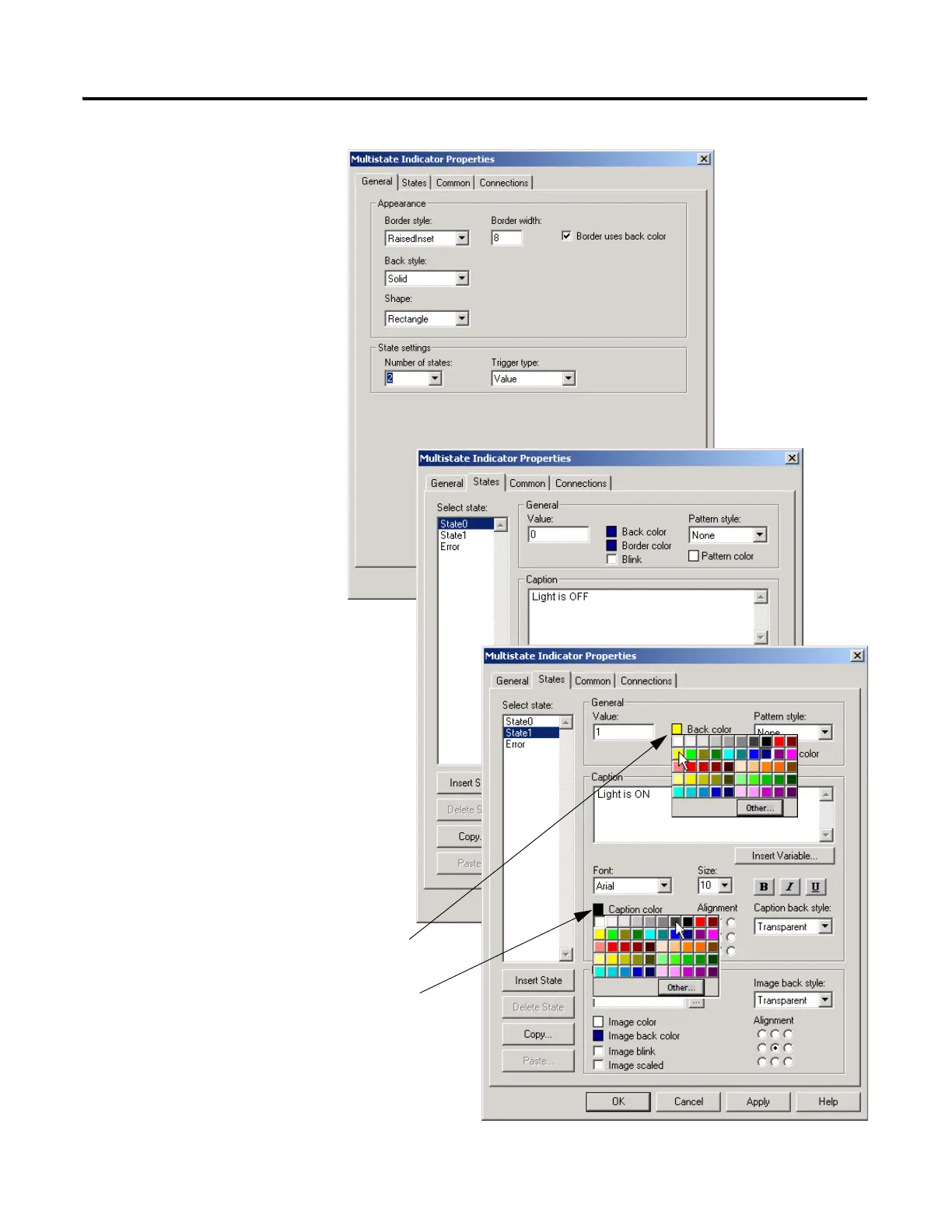

6. On the States tab, verify that
State0 is selected.
7. In the Caption, type Light is
OFF.
8. Select State1.
9. In the Caption, type Light is
ON.
10. Change the Back Color to yellow.
11. Change the Caption Color to black.
5. On the General tab,
select 2 for the
Number of states.
